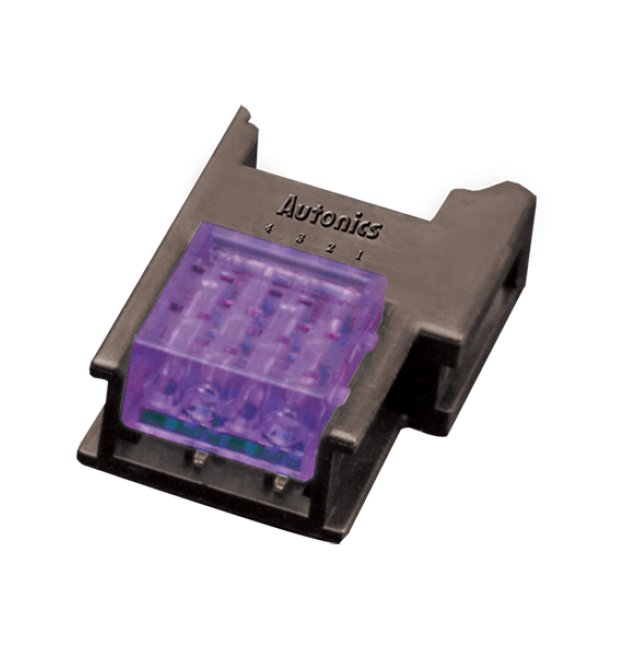

Violet 4-Pin Wire Mount Socket Connector
Violet 4-Pin Wire Mount Socket Connector
SKU:PRO-a7acd3
Reliable Violet 4-Pin Wire Mount Socket Connector for secure and efficient connectivity in demanding environments.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Violet 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Violet 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Violet 4-Pin Wire Mount Socket Connector is designed for optimal connectivity with a maximum AC/DC voltage of ~250V. Featuring C5210 gold terminal material and a durable Polycarbonate/ABS body, this Sensor Connector is built to withstand demanding environments. With a maximum rated current of 3.0A and meeting 30-28 AWG wire size requirements, it ensures reliable performance. Ideal for institutional procurement needs, this connector offers secure terminal retention and complies with UL94V-0 standards.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Violet
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Violet
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
