Viper Pipe Camera - 40m/60m Length, Fiberscope.net by MEDIT
Viper Pipe Camera - 40m/60m Length, Fiberscope.net by MEDIT
SKU:PIP-71f40f
Portable, rugged Viper Pipe Camera for sewer, duct, and well inspections
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Viper Pipe Camera - 40m/60m Length, Fiberscope.net by MEDIT
$2,699.99
Quantity: 1
Claim Your Seller Account
Viper Pipe Camera - 40m/60m Length, Fiberscope.net by MEDIT
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Viper Pipe Camera is a rugged and cost-effective solution for inspecting sewers, ducts, wells, and more. With interchangeable camera heads, self-leveling capabilities, and a waterproof design, it provides high-resolution imaging for various applications. This portable battery-operated system meets stringent industry standards and is ideal for government and institutional procurement.
Product Specifications
Additional Information

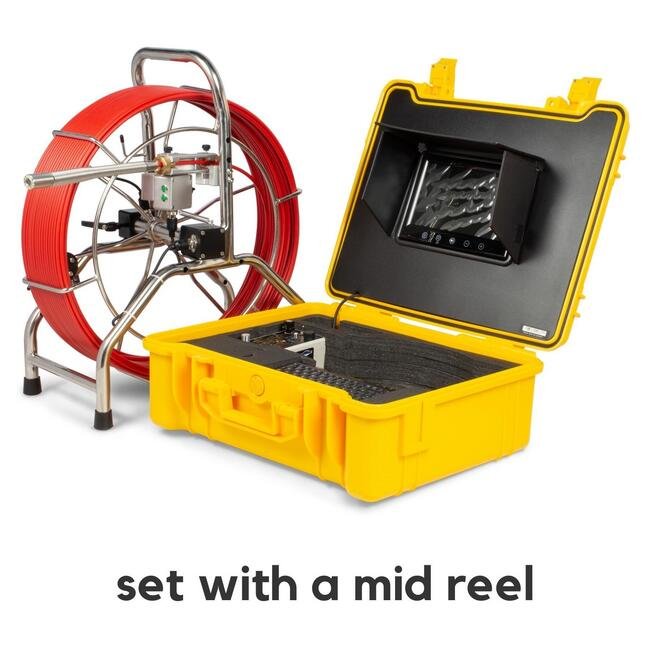

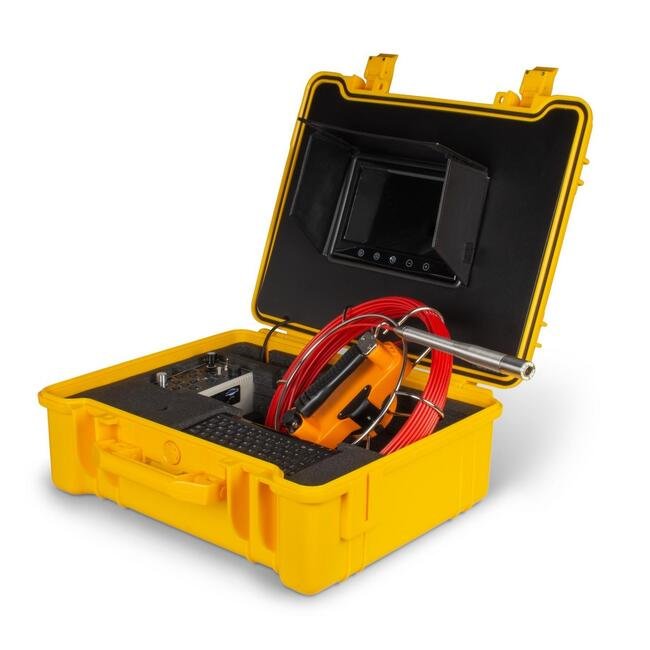

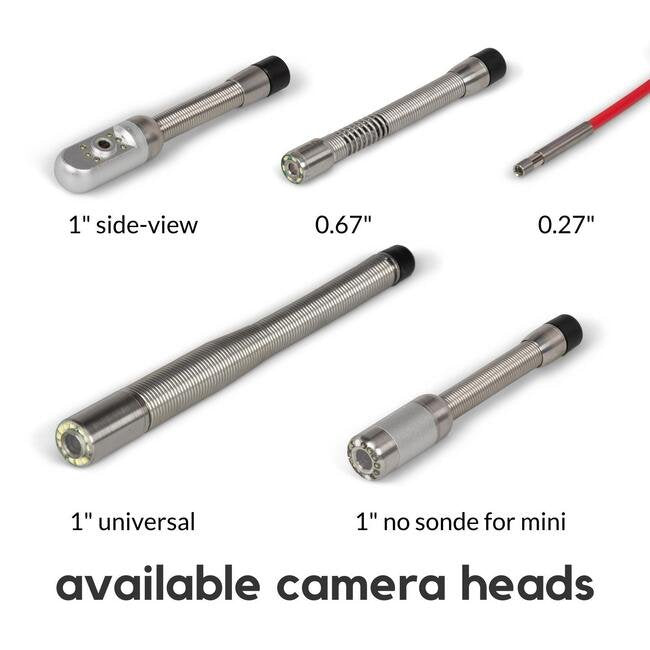

The VIPER Pipe Camera is a cost-effective set designed to inspect sewers, building ducts/pipes, wells, chimneys, and power plants. This unit features a small portable handheld probe coiled on a steel reel and a durable hard plastic carrying case that takes up very little space and can be easily transported to different job sites. The VIPER Pipe Camera has three main parts; the camera head, the push cable on the reel, and the monitor set up in the carrying case. The camera head has a high-resolution CCD camera chip with a wide-angle 120-degree field of view integrated into its design to capture bright images and videos of the inspection areas. Sapphire lenses are fused directly into the camera head to protect it from scratches, and adjustable bright LED Lights illuminate the inspection area. For this push camera set, four additional interchangeable camera heads are available for different applications. These include a 17mm(0.66") Small Straight View, a 23mm(1") Large Straight View with a Self-Leveling/512Hz-Sonde option, a 23mm(1") Short Straight View, and a 23mm(1") Side View camera head. The best option for tight spaces and sharp turns is the 17mm(0.66") camera head; the Self-leveling/Sonde option is available with the 23mm(1") head, while a Side View camera head offers side images. The waterproof PVC-coated fiberglass push cable is 5.5mm (0.21") in diameter and is available in either 40-meter (131.2') or 60-meter (196.8') lengths. The watertight and lightweight plastic carrying case houses a 9' TFT color LCD screen, the DVR box to capture images and video directly to an SD memory card, a rechargeable battery for portable use, a microphone, a footage counter, and a couple of skids for the camera head. The VIPER Pipe camera is a budget and simple solution for inspecting well casings, water mains, drainage, HVAC, and sewers.
Applications
Well Casing InspectionsPipeline InspectionsDrainage SurveysPlumbing and Sewer ApplicationsHVAC Duct InspectionsConstruction Surveys Water Mains Inspections
Features
Optional Sonde/Self-Leveling IntegrationInterchangeable Camera HeadsPortable Battery-Operated SystemSpecial point touch connector to the camera
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Self-Leveling | Side View | Straight View
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
0.66 in | 1 in | 17 mm | 23 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
Yes
Technical Specs Length
131.2 to 196.8 ft | 40 m | 60 m
Technical Specs Monitor Size
9 in
Technical Specs Monitor Type
Liquid Crystal Display (LCD)
Technical Specs Note
Available for Rent
Technical Specs Sonde Frequency
Yes
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP67)
