Viper Pipe Camera System 20-40m Fiberscope.net

Name: Viper Pipe Camera System 20-40m Fiberscope.net
Brand: Fiberscope.net by MEDIT
SKU: PIP-b44a42
Price: 1899.99 USD
Availability: OutOfStock

SKU:PIP-b44a42

Explore with precision and clarity using the Viper Pipe Camera System. Ideal for sewers, ducts, and pipelines. Waterproof, portable, and high-resolution imaging.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Viper Pipe Camera System by Fiberscope.net is an advanced solution for inspecting sewers, building ducts, wells, and pipelines. Featuring interchangeable camera heads, a portable battery-operated design, and high-resolution imaging capabilities, this system offers exceptional performance for various applications. With waterproof construction, optional Sonde integration, and a durable carrying case, the Viper Pipe Camera System is a cost-effective and reliable choice for professionals in plumbing, construction, and maintenance industries.

Product Specifications

Additional Information

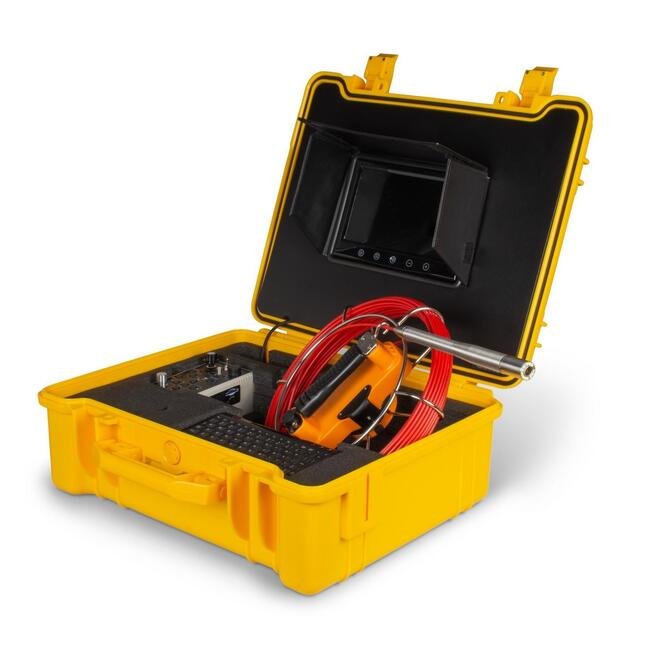

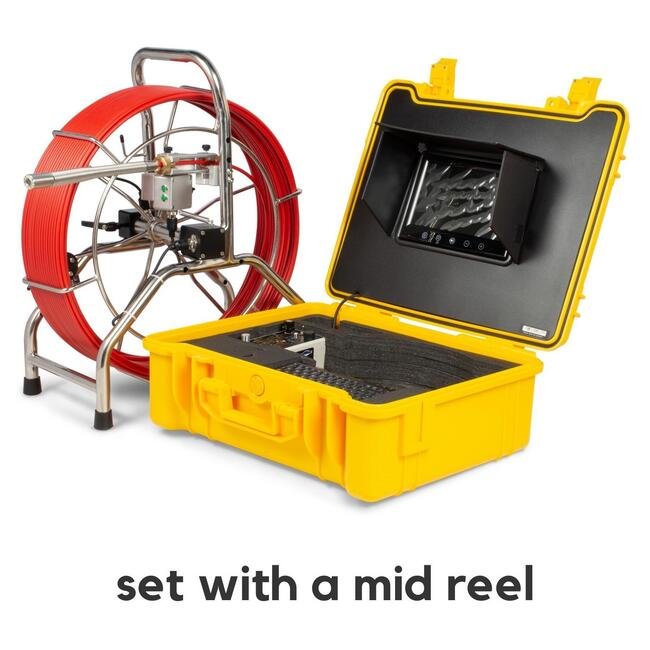

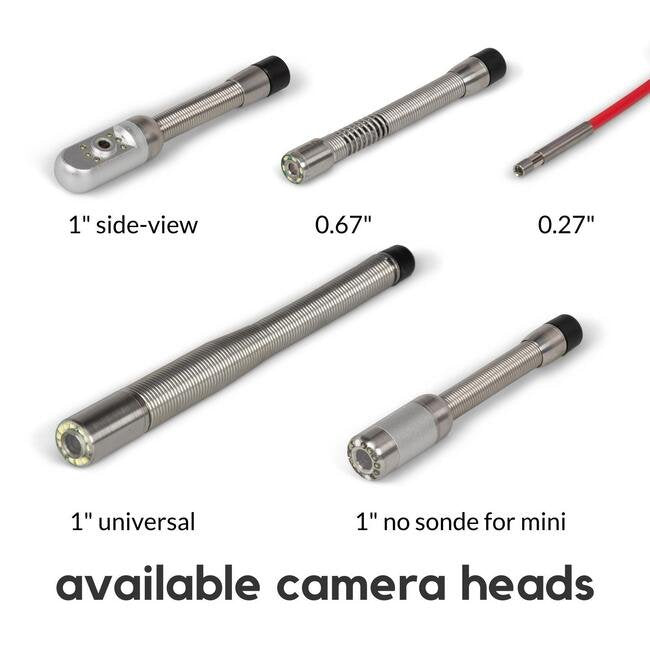

The VIPER Pipe Camera is a cost-effective set designed to inspect sewers, building ducts/pipes, wells, chimneys, and power plants. This unit features a small portable handheld probe coiled on a steel reel and a durable hard plastic carrying case that takes up very little space and can be easily transported to different job sites. The VIPER Pipe Camera has three main parts; the camera head, the push cable on the reel, and the monitor set up in the carrying case. The camera head has a high-resolution CCD camera chip with a wide-angle 120-degree field of view integrated into its design to capture bright images and videos of the inspection areas. Sapphire lenses are fused directly into the camera head to protect it from scratches, and adjustable bright LED Lights illuminate the inspection area. For this push camera set, four additional interchangeable camera heads are available for different applications. These include a 17mm(0.66") Small Straight View, a 23mm(1") Large Straight View with a Self-Leveling/512Hz-Sonde option, a 23mm(1") Short Straight View, and a 23mm(1") Side View camera head. The best option for tight spaces and sharp turns is the 17mm(0.66") camera head; the Self-leveling/Sonde option is available with the 23mm(1") head, while a Side View camera head offers side images. The waterproof PVC-coated fiberglass push cable is 5.5mm (0.21") in diameter and is available in either 20-meter (65.6'), 30-meter (98.4 foot), or 40-meter (131.2') lengths. The watertight and lightweight plastic carrying case houses a 9' TFT color LCD screen, the DVR box to capture images and video directly to an SD memory card, a rechargeable battery for portable use, a microphone, a footage counter, and a couple of skids for the camera head. The VIPER Pipe camera is a budget and simple solution for inspecting well casings, water mains, drainage, HVAC, and sewers.

Applications

Well Casing InspectionsPipeline InspectionsDrainage SurveysPlumbing and Sewer ApplicationsHVAC Duct InspectionsConstruction Surveys Water Mains Inspections

Features

Optional Sonde/Self-Leveling IntegrationInterchangeable Camera HeadsPortable Battery-Operated SystemSpecial point touch connector to the camera

Technical Specs Battery Operated

Yes

Technical Specs Brands

Fiberscope.net by MEDIT

Technical Specs Camera Types

Self-Leveling | Side View | Straight View

Technical Specs Footage Counter

Yes

Technical Specs Head Diameter

0.66 in | 1 in | 17 mm | 23 mm

Technical Specs Imagevideo Capture

Yes

Technical Specs Interchangeable Heads

Yes

Technical Specs Length

65.6 to 131.2 ft | 20 m | 30 m | 40 m

Technical Specs Monitor Size

9 in

Technical Specs Monitor Type

Liquid Crystal Display (LCD)

Technical Specs Note

Available for Rent

Technical Specs Sonde Frequency

Yes

Technical Specs Text Generator

Yes

Technical Specs Waterproof

Ingress Protection (IP67)
