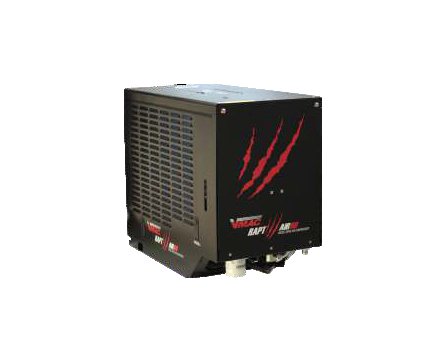

VMAC RAPTAIR 60 Diesel Drive Compressor
VMAC RAPTAIR 60 Diesel Drive Compressor
SKU:VMA-e17d8e
Optimize fleet performance with the VMAC RAPTAIR 60 Diesel Drive Compressor: powerful, efficient, compliant.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
VMAC RAPTAIR 60 Diesel Drive Compressor
$7,899.99
Quantity: 1
Claim Your Seller Account
VMAC RAPTAIR 60 Diesel Drive Compressor
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VMAC RAPTAIR 60 Stand-Alone Diesel Drive Compressor is a game-changer for fleet managers seeking cost-saving efficiency. Weighing only 450 lbs and with a compact design, it outperforms competitors, offering 60 ft³/min air capacity, Kubota diesel engine, and intelligent digital control system. By reducing idling, noise, and emissions, it enhances workplace safety, compliance, and fuel economy, all while delivering reliable power on demand.
Product Specifications
Did You Know Did You Know
Gas Driven air compressors pose major health and safety threats. Due to flame risks they require the strictest safety procedures which many employees fail to follow. OSHA and Safe Work Australia report ?res related to gasoline-driven air compressors as a prevalent problem in the U.S. and Australia.The department of energy has estimated that the typical class 6 and 7 work truck has an equivalent fuel economy of around six miles per gallon. In many cases, a significant portion of that fuel is burned in non-productive operation or while operating engine-driven auxiliary equipment such as a PTO system.
Dimensions Height
28 in
Dimensions Length
34-1/2 in
Dimensions Note For Dimensions
With fuel tank add 4.6 in. to length
Dimensions Width
18 in
Impact Analysis 0
Are you IDLING AWAY your profits and SACRIFICING the health of your employees ?Noise complaints are the number one nuisance complaint received on a construction site. These can result in schedule restrictions or even temporary shutdowns on job sites.The RAPTAIR60 automatically turns itself off, decreasing noise and controlling emissions.The RAPTAIR60 air compressor is rated at 83 dB, which is considered safe. Noise over 85dB causes hearing damage.An unhealthy OSHA record can be the basis for disallowing your company to take part in the bid process for many jobs.
Product Information 0
How VERSATILE is your air compressor?With an optional fuel tank, the RAPTAIR60 can be skid mounted and easily hoisted via crane or helicopter to remote locations in need of air.With an optional low-rpm Mine Safety and Health Administration (MSHA) certified RAPTAIR60, you can operate the machine at underground mine sites.
Specifications Approximately System Wet Weight
204 kg | 450 kg
Specifications Battery
Internal with integrated jump start/vehicle tie-in point
Specifications Brand
VMAC
Specifications Cold Climate Voltage
Optional 120 V, tested to -40 ºC with optional 12 V inverter for vehicle tie-in
Specifications Coolers Engine And Compressor
Integrated
Specifications Engine
Kubota diesel D902 3-cylinder, naturally aspirated 3600 rpm Tier 4 final compliant, optional 3200 rpm (MSHA certified) system
Specifications Fuel Economy 2
The EPA reports that every 100 lbs weight reduction translates to a 2 % improvement in fuel economy.
Specifications Fuel Economy 6
Without even considering engine idling, the RAPTAIR can save you up to 6 % on your next fuel bill.
Specifications Fuel Supply
Optional 7 gallon with fuel gauge and low fuel shut off sensor | Optional fuel priming pump available
Specifications Idling Stops Here
A RAPTAIR will keep expenses compact and make profits powerful. | Programmable controls mean you decide how long the RAPTAIR will idle. | Reduced idling and reduced weight mean more cash in your pocket.
Specifications Intelligent Digital Control System
System will shut down engine when air is not needed, and will automatically restart the engine again when air is required (adjustable time delay)
Specifications Minimum Air Receiver Tank Capacity At 150 Psi Rat
5 gal
Specifications Rated Air Capacity At 100 Psi Rating 150 Psi Maxi
60 ft³/min
Specifications Throttle Control
2-speed throttle, responds to air demand.
Specifications Type
100% Duty Cycle | Direct Driven | VMAC Oil-Injected Rotary Screw
Specifications Warranty
Two years on all major components (engine warranted by Kubota)
Specifications Weight Savings
The RAPTAIR is 350 pounds lighter than the competition.
Specifications What We Pay Per Gallon Of Diesel
13% Taxes | 16% Distribution | 62% Crude Oil | 9% Refining
Value Proposition 0
Is your gasoline driven compressor causing you FRUSTRATION and FAILURE?The RAPTAIR60 diesel drive ensures that, in most cases, you only need one type of fuel for ill ups, eliminating the opportunity for error in filling the fuel tank with the wrong fuel - a common problem for gasoline driven air compressors.The RAPTAIR60 is Kubota diesel engine-driven, which mitigates gasoline fires common when using gasoline stand-alone air compressors. These not only lead to health and safety claims, but can also result in EPA fines.
Why Are You Wasting Diesel Why Are You Wasting Diesel
Skyrocketing fuel costs and strict environmental regulations are driving more and more fleet managers to acquire new anti-idling technologies.Avoiding excessive idling also reduces wear and damage on your spark plugs, cylinders and exhaust systems72 cent- The cost of 10 minutes of idling1.2 gal-The diesel you are estimated to burn every hour your truck idles.
