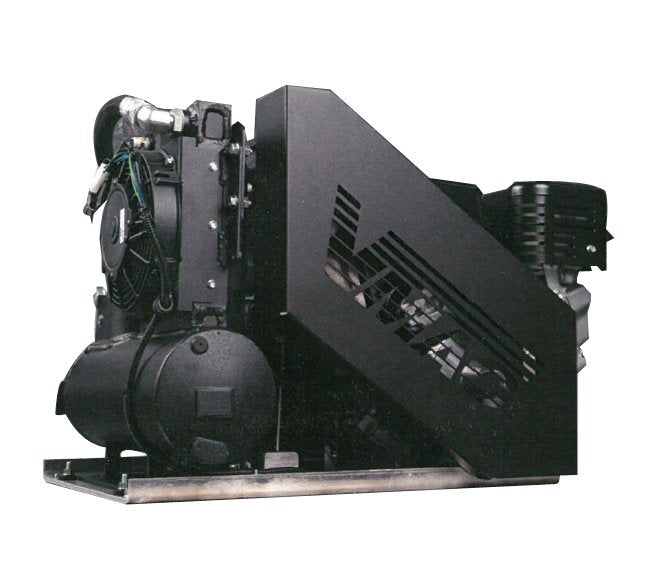

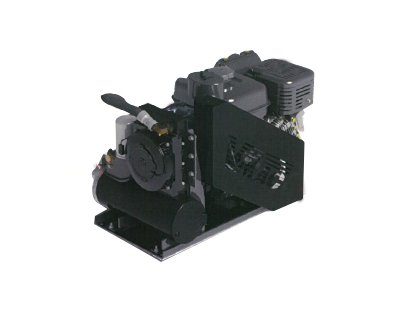

VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor
VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor
SKU:VMA-a21526
Powerful VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor with 30 ft³/min air capacity, reliable Subaru engine, and Lifetime Warranty.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor
$3,499.99
Quantity: 1
Claim Your Seller Account
VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VMAC RAPTAIR-G30 Gas Drive Rotary Screw Air Compressor offers unparalleled performance and reliability at an affordable price point. With a 100% duty cycle and 30 ft³/min air capacity, this compressor is ideal for continuous airflow needs. Equipped with a Subaru 14HP gasoline engine and advanced safety features, it meets EPA and CARB standards. Its compact design and Lifetime Warranty on the air end make it a top choice for businesses seeking efficiency and durability.
Product Specifications
Did You Know Did You Know
By reducing the weight on your service truck by 200 lbs, you may be able to avoid the watchful eye of DOT regulations and save as much as 4% on your fuel costs.

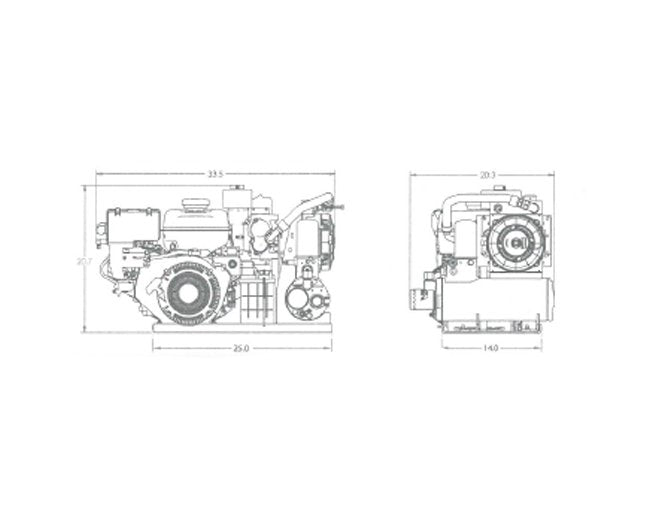

Dimensions Height
20.7 in
Dimensions Length
33.5 in
Dimensions Width
20.3 in

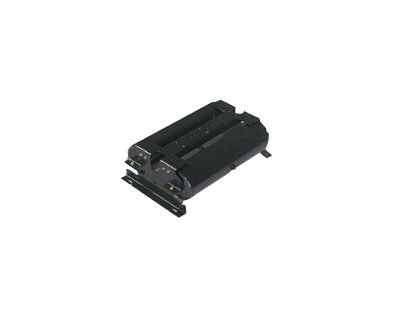

Optional Equipment Low Profile Air Receiver Tanks
A500037 - Dual 6-gallon air receiver tanks with G30 mounting frame that includes gauge, fittings, hose, and valves (Adds 10 in. to height and 90 lbs (41 kg) to weight)
Optional Equipment Noise Reduction Exhaust Resonator
A500035 - Engineered muffler extension that significantly reduces engine noise
Optional Equipment Remote Control Panel
A500038 - Remote panel with 10 foot extension for key switch, hour meter and choke
Product Information Backed By A Life Time Warranty
VMAC strives to provide the best warranty service in the industry to give you the peace of mind you need. Specifically, the RAPTAIR-G30 is supported by VMAC's Lifetime Warranty on the air end and Subaru's 5-Year warranty on the engine.
Product Information Continuous Duty Air Power
The RAPTAIR-G30 provides you with continuous airflow of 30 CFM to get most day-to-day jobs done - only faster. The compressor is rated at 100% duty-cycle which means it never stops producing the air that is required. Now you can seamlessly run your air tools without any interruptions and no need to wait for your compressor to fill a receiver tank. Focus on your work and leave everything else to the RAPTAIR-G30 gas drive air compressor.
Product Information Un Matched Size And Weight
The compressor is built from high-quality light-weight aluminum components that makes it the lightest gas drive compressor available. The RAPTAIR-G30 is half the weight of competitive reciprocating models on the market. Also, its efficient design results in a small footprint that provides more room for your tools and other necessary equipment, and allows the compressor to easily fit on the side pack of a service body.
Rotary Screw Quick Facts 0
Powerful 100% duty cycle means you can fill a tractor trailer tier in 180 seconds.Rotary screw compressor have a long history of superior performance and durability.A drier, cooler option over reciprocating compressors, the rotary screw compressor makes less unwanted heat and moisture in the system.Smooth air delivery eliminates the need for large receiver tanks in most applications.
Specifications Approximately System Wet Weight
250 lb | 93 kg
Specifications Brand
VMAC
Specifications Engine

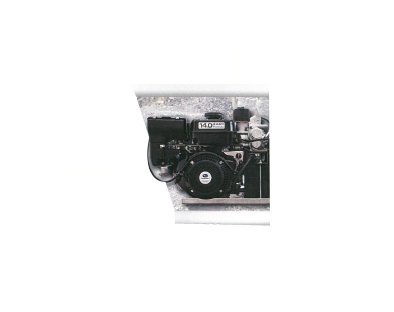

Subaru EX40 14HP gasoline OHC engine, electric start, EPA and CARB-compliant, Subaru approved application
Specifications Fuel Tank Capacity
1.8 gal
Specifications Mounting Plate Length
25 in
Specifications Mounting Plate Width
14 in
Specifications Rated Air Capacity At 100 Psi Rating 150 Psi Maxi
30 ft³/min
Specifications Safety Features
Compressor thermal protection circuitAutomatic rapid blow-down valve on tank200 PSI pressure relief valve
Specifications Sound At 20 Ft
86 dB
Specifications Type
100% Duty Cycle | Belt Driven | VMAC Oil-Injected Rotary Screw

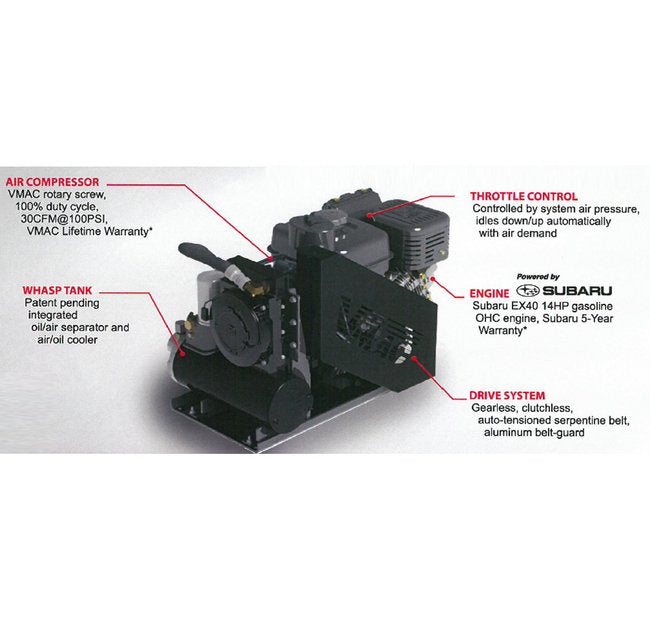

System Components Drive System
Aluminum belt-guard | Auto-tensioned serpentine belt | Clutchless | Gearless
System Components Engine System Components
Subaru 5-Year Warranty | Subaru EX40 14HP gasoline OHC engine
System Components Throttle Control System Components
Controlled by system air pressure, idles down/up automatically with air demand.
System Components Type System Component
100% Duty Cycle | 30 CFM at 100 psi | VMAC Lifetime Warranty | VMAC Rotary Screw
System Components Whasp Tank
Patent pending integrated oil/air separator and air/oil cooler.
