VMAC RAPTAIR-MF Diesel Drive Multifunction Air Compressor
VMAC RAPTAIR-MF Diesel Drive Multifunction Air Compressor
SKU:VMA-268f02
Revolutionize your operations with the all-in-one VMAC RAPTAIR-MF Diesel Drive Multifunction Air Compressor. Enhance efficiency and cut costs with this compact powerhouse!
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
VMAC RAPTAIR-MF Diesel Drive Multifunction Air Compressor
$14,999.99
Quantity: 1
Claim Your Seller Account
VMAC RAPTAIR-MF Diesel Drive Multifunction Air Compressor
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

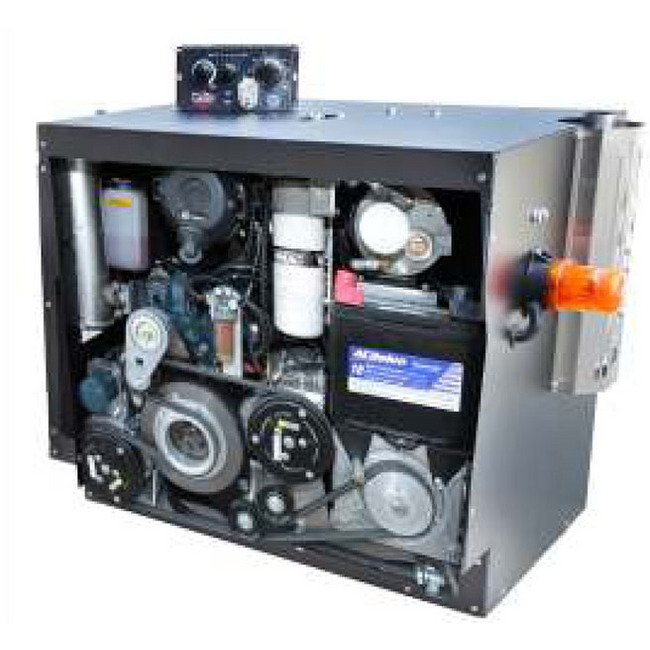

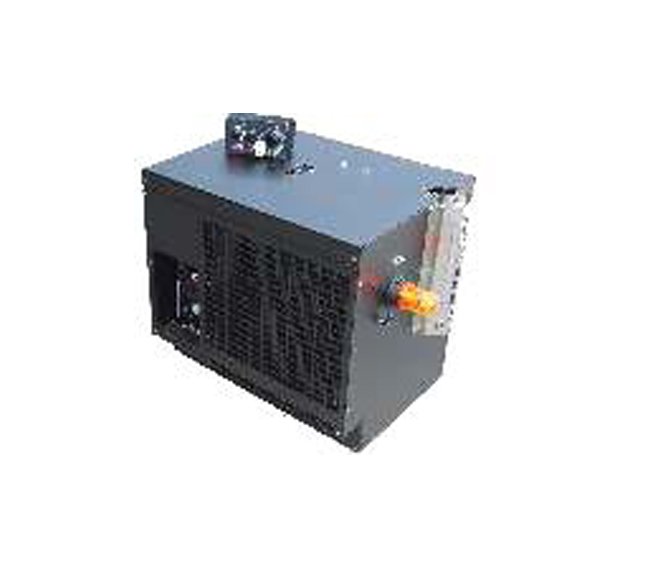

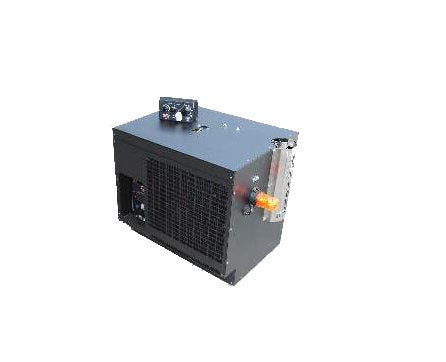

The VMAC RAPTAIR-MF is a game-changer for those looking to streamline operations and reduce costs. With six essential systems in one compact unit, including a welder, air compressor, generator, and battery booster, this unit simplifies maintenance and boosts efficiency. Equipped with a Kubota diesel engine and designed for durability, the RAPTAIR-MF ensures reliable performance even in demanding conditions. Save on fuel costs with its intelligent control system that optimizes fuel usage, making it an ideal choice for government and institutional buyers seeking high-performance, cost-effective solutions.
Product Specifications
Did You Know Did You Know
Gas-driven air compressors pose major health and safety threats. Due to Flame risk they require the strictest safety procedures which many employees fail to follow. OSHA and Safe Work Australia report fires related to gasoline-driven air compressors as a prevalent problem in the U.S. and Australia.The Department of Energy has estimated that the typical Class 6 and 7 work truck has an equivalent fuel economy of around six miles per gallon. In many cases, a significant portion of that fuel is burned in non-productive operation or while operating engine-driven auxiliary equipment such as a PTO system.
Dimensions Height
29 in
Dimensions Length
33 in
Dimensions Note For Dimensions
With fuel tank add 4.6 in. to length
Dimensions Width
23 in
Electrical Output Alternating Current Ac For Electrical Output
One 10,000 W continuous three phase 60 Hz output, 240 V output | One 7,000 W continuous single phase 60 Hz output, 240 V output | Two 20 A 120 V duplex receptacles at 2,400 W each
Electrical Output Capable Direct Current Dc Current
300 A
Electrical Output Direct Current Welding At 100 Duty Cycle
200 A
Electrical Output Direct Current Welding At 70 Duty Cycle
300 A
Electrical Output Selectable Direct Current Dc For Electrical Ou
12 V | 24 V | 36 V | 48 V
Electrical Output Welding For Electrical Output
CC mode for SMAW and GTAW (stick/TIG welding) | CV mode for GMAW and FCAW (MIG/flux core welding)
Product Information 0
Are you WASTING time on the job site maneuvering too many systems?The RAPTAIR-MF allows workers to seamlessly switch between applications, without the hassle of maneuvering equipment. This means more time working, improving productivity, allowing you to provide shorter estimates on bids.The elimination of additional systems allows for more cargo capacity in your truck, providing space to transport valuable equipment and supplies.Six systems require additional workers to operate them whereas the RAPTAIR-MF is designed to run efficiently with only one person.The RAPTAIR-MF is designed for ease-of-use even in the most challenging circumstances.The RAPTAIR-MF is the same size as one standard air compressor, generator or welder, creating three times the space on your truck for additional equipment.The RAPTAIR-MF can be integrated with your trucks fuel system eliminating the need for an additional fuel tank.
Specifications Approximately System Wet Weight
265 kg | 585 kg
Specifications Battery Boostercharger Voltage
48 V
Specifications Brand
VMAC
Specifications Cold Climate Voltage
120 V
Specifications Coolers Engine And Compressor
Integrated
Specifications Engine
Kubota diesel D902 3-cylinder, naturally aspirated 3,600 rpm Tier 4 final compliant
Specifications Flow Rate
15 ft³/min
Specifications Fuel Supply
Optional 7 gallon with fuel gauge and low fuel shut off sensor | Optional fuel priming pump
Specifications Generator Power
10 kW
Specifications Intelligent Digital Control System
2-speed throttle control | Optional 15-foot remote current pendant control, separate selector switches engage compressor, generator, welder and PTO (any function or all 3 can be selected at any time) | Remote mounted generator/welder control panel | System will shut down engine when air is not needed, and automatically restart the engine again when air is required (adjustable time delay)
Specifications Minimum Air Receiver Tank Capacity At 200 Psi Rat
5 gal
Specifications Power Takeoff Port
SAE "A" port, 9 tooth spline, clockwise rotation, with 2,800 rpm output, 35 ft-lb continuous torque max (hydraulic pump not included)
Specifications Rated Air Capacity At 100 Psi Rating 175 Psi Maxi
45 ft³/min
Specifications Type
100% Duty Cycle | Belt Driven | VMAC Oil-Injected Rotary Screw
Specifications Warranty
Two years on all major components (engine warranted by Kubota)
Specifications Welder Hydraulic Capabilities Current
300 A
Value Proposition 0
Are you BLEEDING money through your fuel tank?According to the EPA, every 100 lbs of excess weight can cost you as much 2% in fuel efficiency.The RAPTAIR MF saves, or average, about 600lbs in weight when compared to the weight of six separate systems. That is a potential fuel savings of about 12%.The RAPTAIR-MF's automatic shulcff controls ensure that its diesel engine is not running when air is not required, further decreasing your fuel costs and emissions.
