VMAC Underhood Air Compressor - Engine-Integrated Vehicle Mounted Air Compressor
VMAC Underhood Air Compressor - Engine-Integrated Vehicle Mounted Air Compressor
SKU:VMA-97ce12
Revolutionize truck performance with the VMAC Underhood Air Compressor. Engine-integrated for efficiency and compliance.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
VMAC Underhood Air Compressor - Engine-Integrated Vehicle Mounted Air Compressor
$2,999.99
Quantity: 1
Claim Your Seller Account
VMAC Underhood Air Compressor - Engine-Integrated Vehicle Mounted Air Compressor
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

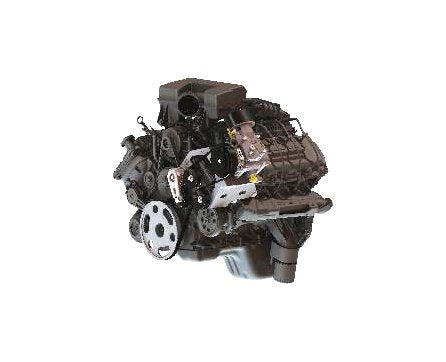

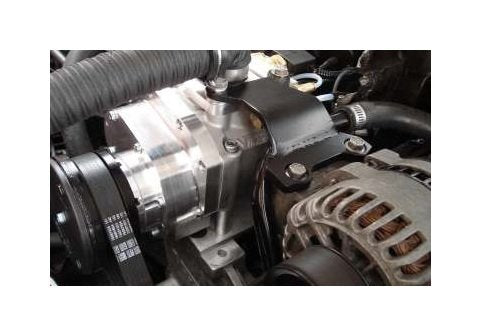

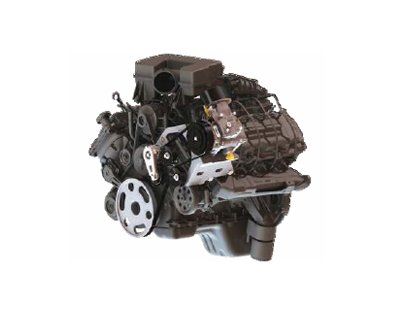

The VMAC Underhood Air Compressor revolutionizes truck performance by integrating with the truck's engine, eliminating the need for a separate engine and reducing maintenance costs. This compressor leverages the truck's existing cooling system, eliminating the need for extra fluids. With Intelligent Digital Controls, the engine automatically shuts off when not in use, reducing fuel consumption. Key features include 100% Duty Cycle, Belt Driven design, and a compact lightweight aluminum construction, freeing up cargo space for essential equipment. Improve productivity and efficiency while meeting stringent government procurement standards.
Product Specifications
Above Deck Reciprocating Compressor 30 Duty Cycle
Occupies space in your truck's cargo area
Above Deck Reciprocating Compressor Operational Weight For 30 Du
450 lb
Additional Features On The 70 G Model Adjustable Parameters
Digital setup on display box
Additional Features On The 70 G Model Air Receiver Tank Not Incl
Minimum 5 gallon (200 psi) required for proper operation of all functions
Additional Features On The 70 G Model Standby Mode
Automatic (adjustable), engine turns off at a set time period when no air use is detected, engine turns on again with air use, low battery restart, internal cab temperature restart
Additional Features On The 70 G Model Vmac Intelligent Digital C
Significant decrease in stationary fuel consumption, emissions and operating costs and meets anti-idling by law requirements.
Did You Know Did You Know
If you are able to move your work truck below 10,000 lbs you will be able to avoid the watchful eye of DOT which will in turn reduce administrative costs, not to mention the benefits of bypassing weigh scales.A fleet manager with a 184-truck fleet switched to aluminum components achieving a 25% reduction in weight, which in return produced a $2.2 million savings for the company.Fuel is approaching pre-recession prices, making it the most expensive it has ever been in history.
Impact Analysis 0
Are excessive emissions CONSUMING your budget?An UNDERHOOD runs at 100 % duty cycle while in use, getting the job done fast with less fuel consumption.Excessive emissions can cost you big time by increasing health and safety risks, incurring large fines, and making your company ineligible for government tax credits and grants.With the air on demand feature the compressor will only produce as much air as the tool is drawing.An UNDERHOOD replaces the need for a tow-behind air compressor leaving the hitch free for other key equipment.With zero footprint in your cargo area the UNDERHOOD frees up valuable space for transporting additional tools and equipment.The UNDERHOOD is made from aluminum components, which are light-weight and durable, increasing peak performance while keeping weight as low as possible.
Product Information 0
Are you WASTING valuable space and weight on your trucks?An UNDERHOOD replaces the need for a tow-behind air compressor leaving the hitch free for other key equipment.With zero footprint in your cargo area the UNDERHOOD frees up valuable space for transporting additional tools and equipment.The UNDERHOOD is made from aluminum components, which are light-weight and durable, increasing peak performance while keeping weight as low as possible.
Specifications Airoil Separator Tank
Lightweight aluminum, mounts along frame rail.
Specifications Bracket
Lightweight cast aluminum design, application engineered, easy installation.
Specifications Brand
VMAC
Specifications Cooler
Liquid to liquid, mounts below radiator.
Specifications Display And Controls
LCD display; service notifications, error messages and system temperature.

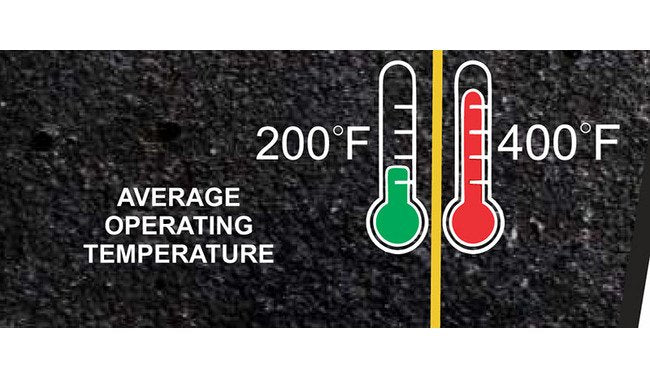

Specifications Maximum Average Operating Temperature
400 ºF
Specifications Minimum Air Receiver Tank Capacity
5 gal
Specifications Minimum Average Operating Temperature
200 ºF
Specifications Rated Air Capacity
0 to 70 ft³/min
Specifications Rated Air Capacity At 175 Psi Rating
0 to 150 ft³/min
Specifications Safety Features
Vehicle drive disable circuit on throttle control, park brake safety shut-off switch on control box, automatic rapid blow-down valve on tank, 200 psi pressure relief valve on tank, electric clutch on compressor.
Specifications Throttle Control
Adjusts engine speed automatically to match air demand.
Specifications Type
100% Duty Cycle | Belt Driven | VMAC Oil-Injected Rotary Screw
Specifications Warranty
Two years on all major components
Specifications Wet Weight For Vr150
200 lb | 90 kg
Specifications Wet Weight For Vr70
150 lb | 68 kg

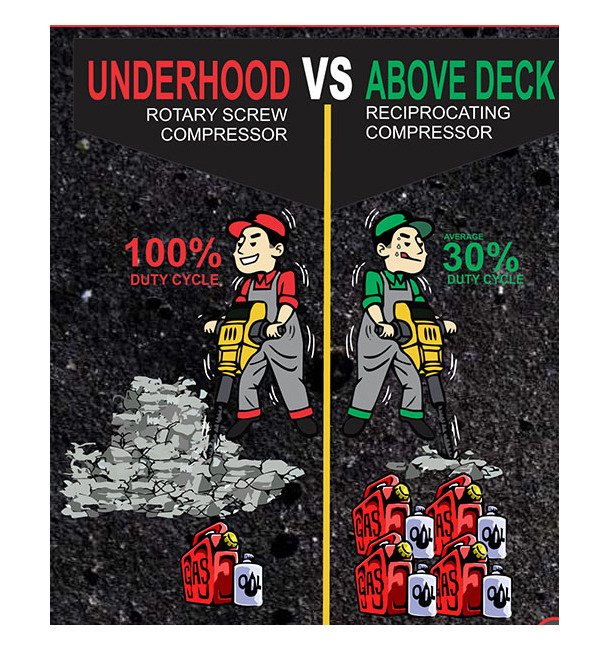

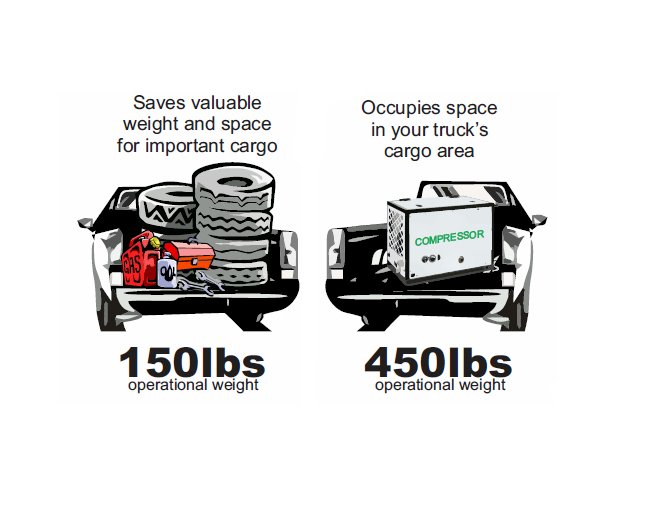

Underhood Rotary Screw Reciprocating Compressor 100 Duty Cycle
Saves valuable weight and space for important cargo
Underhood Rotary Screw Reciprocating Compressor Operational Weig
150 lb
