Vortec Adjustable Cold Air Gun Kit
Vortec Adjustable Cold Air Gun Kit
SKU:GUN-82fc6b
Powerful vortex tube technology for industrial spot cooling without moving parts. Adjustable settings for optimum performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Vortec Adjustable Cold Air Gun Kit
$349.99
Quantity: 1
Claim Your Seller Account
Vortec Adjustable Cold Air Gun Kit
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

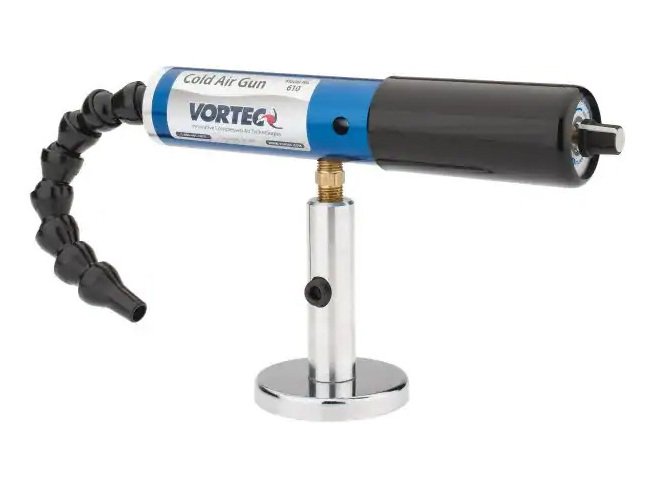

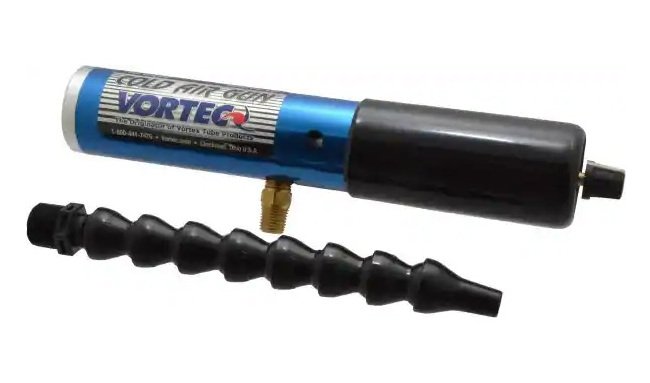

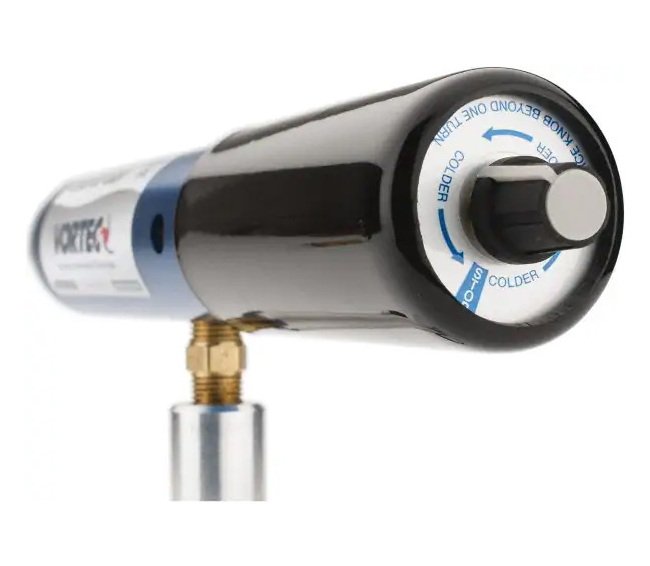

The Vortec Adjustable Cold Air Gun Kit is a high-performance industrial cooling solution that uses vortex tube technology to produce sub-freezing air for spot cooling applications. With adjustable temperature and flow settings, this kit offers versatile and efficient cooling for machining operations without the need for liquid coolant. Meets OSHA noise specifications, ensuring a safe working environment. Reduce heat-related parts growth, improve tolerance, and enhance surface finish quality with this maintenance-free and energy-efficient cold air gun kit.
Product Specifications
Applications Applications
Cooling Molds & Molded PiecesDrill & Tool SharpeningDrillingMachiningMillingSurface GrindingTurning
Technical Specs Air Capacity
900 Btu/hr
Technical Specs Air Consumption At 100 Pounds Per Square In Gaug
15 scfm
Technical Specs Brands
Vortec
Technical Specs Cold Air Gun Model
610
Technical Specs Compressed Air Pressure
80 to 100 psig
Technical Specs Cooling Capacity
900 Btu/hr
Technical Specs Diameter
1 3/4 in

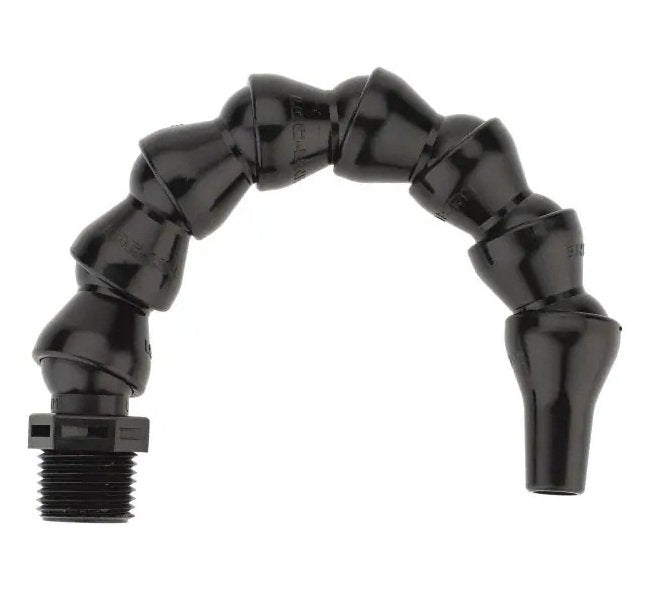

Technical Specs Flexible Nozzle Diameter
1 in
Technical Specs Hose Length
8 in | 203.20 mm
Technical Specs Inlet Thread
1/4 in
Technical Specs Inlet Type
National Pipe Thread (NPT)
Technical Specs Magnetic Base Diameter
3Â -3/16 in
Technical Specs Magnetic Base Height
4-1/8 in
Technical Specs Maximum Pressure
100.00 psi
Technical Specs Maximum Recommended Pipehose Length
25 in
Technical Specs Minimum Outlet Temperature At 70 F Inlet Air
-10 ºF
Technical Specs Minimum Pressure Psi
80.00 psi
Technical Specs Nozzle Length
8 in
Technical Specs Number Of Outlets
1
Technical Specs Outlet Air Flow Rate
2 to 15 scfm
Technical Specs Outlet Diameter Od
3/8 in
Technical Specs Overall Length Oal
18 5/8 in

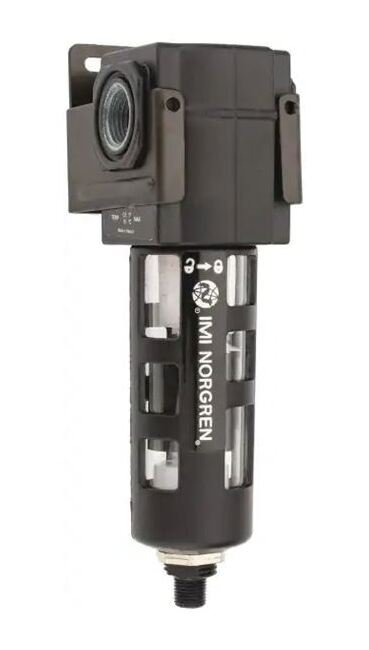

Technical Specs Recommended Filter Model
701S-24A
Technical Specs Recommended Filter Size
25 scfm
Technical Specs Supply Hose Diameter
3/8 in
Technical Specs Tankunit Height
168.40 mm | 6.6300 in
Technical Specs Tankunit Length
269.88 mm | 10-5/8 in
Technical Specs Type
Cold Air Gun Kit
Technical Specs Weight
3 lb
