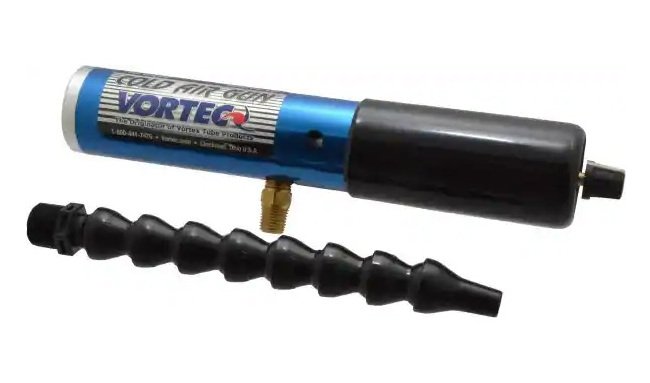

Vortec Adjustable Cold Air Gun with Vortex Tube Technology
Vortec Adjustable Cold Air Gun with Vortex Tube Technology
SKU:GUN-33b20f
Achieve efficient spot cooling with the Vortec Cold Air Gun for enhanced productivity and tool longevity.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Vortec Adjustable Cold Air Gun with Vortex Tube Technology
$349.99
Quantity: 1
Claim Your Seller Account
Vortec Adjustable Cold Air Gun with Vortex Tube Technology
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vortec Adjustable Cold Air Gun is a cutting-edge industrial cooling solution that utilizes vortex tube technology and filtered compressed air to produce sub-freezing air for spot cooling applications. With no moving parts, this Cold Air Gun is low-maintenance and highly reliable, meeting OSHA noise specifications. It offers adjustable temperature and flow rate, quiet operation, and eliminates the need for liquid coolant or Freon. From cooling molds to surface grinding, this versatile tool enhances efficiency, extends tool life, and improves machining outcomes. It outperforms traditional cooling methods, reduces downtime, and enhances overall productivity in various industrial operations.
Product Specifications
Additional Information Additional Information
Cold Air Guns use vortex tube technology and filtered compressed air to produce sub-freezing air as low as -30 deg F (-34 deg C) for numerous industrial spot cooling applications. With no moving parts to wear out, Cold Air Guns require no electricity, just a compressed air source. The air consumption range is from 15 SCFM to 35 SCFM.Cold Air Guns are most often used for cooling of metal parts, in the machining and repair of metals, plastics, wood, ceramics and other materials. Cold air machining outperforms mist coolants and substantially increases tool life and feed rates on dry machining operations. The effective cooling from a Cold Air Gun can eliminate heat-related parts growth while improving parts tolerance and surface finish quality. Cold Air Guns have adjustable temperature and flow settings; and some models have a frost free nozzle to eliminate mess from frost and condensation.
Applications Applications
Cooling Molds & Molded PiecesDrill & Tool SharpeningDrillingMachiningMillingSurface GrindingTurning
Benefits Benefits
Increase dry machining speeds up to 36%Extend tool life by 50%Eliminates the mess, expense and safety concerns of using mist coolantsReduce waiting or normalization time by cooling parts fasterEliminate the potential for burning and scorchingAvoid secondary parts cleaning after machiningReduce grinding wheel loading caused by overheatingAirflow clears sawdust, shavings and dirt away from surface
Features Features
Creates cold air up to 100 F deg (+ 56 C deg) below the inlet compressed air temperatureQuiet operation; meets OSHA noise specificationsAdjustable temperature and flow rateHighly reliable with no moving partsLow pressure outlet airUses only compressed air - no FreonSystem includes a magnetic base and a 5 micron auto-drain compressed air filterMagnetic base allows for easy, close in positioning and easy portabilityErgonomic trigger mechanism on the Cold Air PistolFrost free nozzle eliminates mess from frost and condensation
Technical Specs Air Capacity
900 Btu/hr
Technical Specs Air Consumption At 100 Pounds Per Square In Gaug
15 scfm
Technical Specs Brands
Vortec
Technical Specs Cold Air Gun Model
610
Technical Specs Compressed Air Pressure
80 to 100 psig
Technical Specs Cooling Capacity
900 Btu/hr
Technical Specs Diameter
1 3/4 in
Technical Specs Flexible Nozzle Diameter
1 in
Technical Specs Hose Length
8 in | 203.20 mm
Technical Specs Inlet Thread
1/4 in
Technical Specs Inlet Type
National Pipe Thread (NPT)
Technical Specs Long Hose
8 in
Technical Specs Magnetic Base Diameter
3Â -3/16 in
Technical Specs Magnetic Base Height
4-1/8 in
Technical Specs Maximum Pressure
100.00 psi
Technical Specs Maximum Recommended Pipehose Length
25 in
Technical Specs Minimum Outlet Temperature At 70 F Inlet Air
-10 ºF
Technical Specs Nozzle Length
8 in
Technical Specs Number Of Outlets
1
Technical Specs Outlet Air Flow Rate
2 to 15 scfm
Technical Specs Outlet Diameter Od
3/8 in
Technical Specs Overall Length Oal
18 5/8 in
Technical Specs Recommended Filter Model
701S-24A
Technical Specs Recommended Filter Size
25 scfm
Technical Specs Supply Hose Diameter
3/8 in
Technical Specs Tankunit Height
168.40 mm | 6.6300 in
Technical Specs Tankunit Length
269.88 mm | 10-5/8 in
Technical Specs Type
Cold Air Gun
Technical Specs Weight
3 lb
