VPM Medical Toroidal Transformer 50VA
VPM Medical Toroidal Transformer 50VA
SKU:POW-bef1c3
Reliable VPM Series Toroidal Medical Transformer with Class F insulation, 4KV dielectric isolation, and CE/CRU®US certifications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
VPM Medical Toroidal Transformer 50VA
$79.99
Quantity: 1
Claim Your Seller Account
VPM Medical Toroidal Transformer 50VA
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

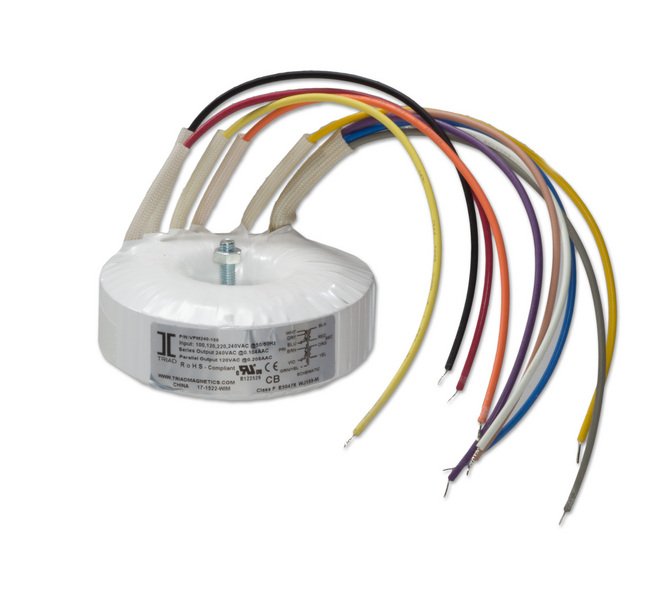

The VPM Series Toroidal Medical Transformer is a reliable power solution designed for medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V at 50/60Hz, and secondary dual voltage configurations for parallel or series connections, this transformer ensures optimal performance. It features Class F insulation, 4KV dielectric isolation, low leakage current, and minimal stray fields. With CE and CRU®US certifications, this transformer meets industry standards for safety and quality.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
50 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
38 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
15 V | 30 V
Specifications Outside Diameter
92 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical

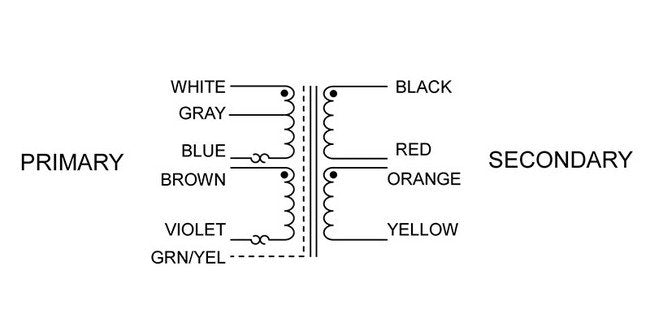

Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
50 V·A
Specifications Secondary Voltage In Parallel
15 V at 3.34 A
Specifications Secondary Voltage In Series
30 V CT at 1.67 A
Specifications Regulation
11.8 %
Specifications Temperature Rise
45 ºC
Specifications Weight
0.7 kg
