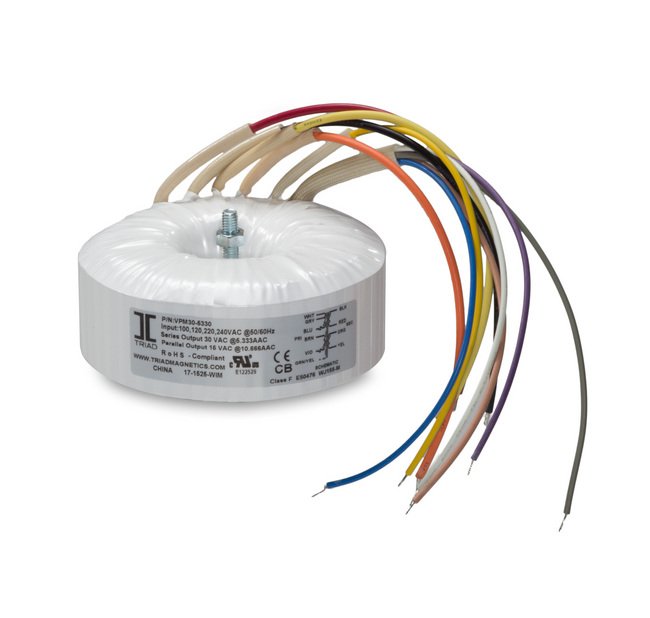

VPM Series 160 VA Toroidal Medical Transformer
VPM Series 160 VA Toroidal Medical Transformer
SKU:POW-93457c
Reliable VPM Series 160 VA Toroidal Medical Transformer for precise medical equipment power distribution.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
VPM Series 160 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Claim Your Seller Account
VPM Series 160 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series 160 VA Toroidal Medical Transformer is designed for precise power distribution in medical equipment. With primary voltage options of 100, 120, 220, or 240 VAC and secondary dual voltage for series or parallel connection, this transformer ensures reliable performance. Meeting Class F insulation standards and boasting low leakage current and stray fields, it guarantees safety and efficiency in medical settings. The transformer adheres to industry standards such as CE and CRU®US, making it a trusted choice for medical institutions.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
6 V | 12 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
6.0 V at 26.6 A
Specifications Secondary Voltage In Series
12 V CT at 13.3 A
Specifications Regulation
7.6 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
