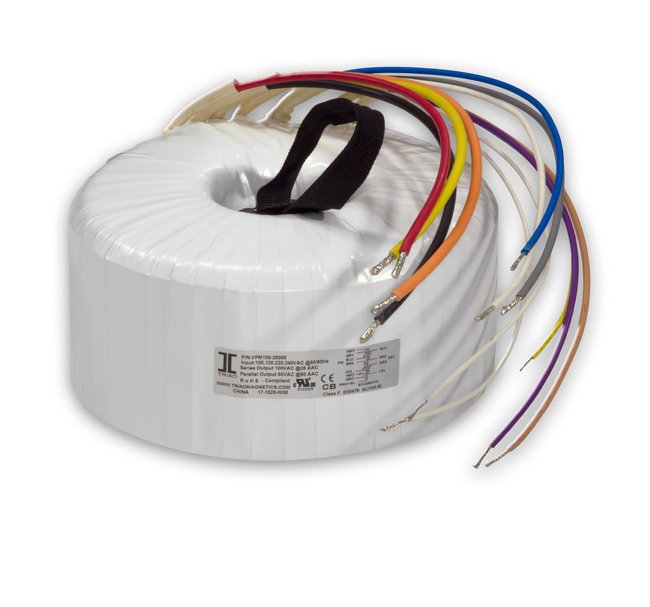

• VPM Series 3000VA Toroidal Medical Transformer - Image 1
  • VPM Series 3000VA Toroidal Medical Transformer - Image 2
  • VPM Series 3000VA Toroidal Medical Transformer - Image 3
1 3
Triad Magnetics →

VPM Series 3000VA Toroidal Medical Transformer

VPM Series 3000VA Toroidal Medical Transformer

POW-90c58f

Reliable 3000VA Toroidal Medical Transformer with dual outputs, low leakage current, and Class F insulation. Meets CE & CRU®US standards.

$499.99
$499.99
Sale

Initiate Order

VPM Series 3000VA Toroidal Medical Transformer

VPM Series 3000VA Toroidal Medical Transformer

$499.99

Quantity: 1

Claim Your Seller Account

VPM Series 3000VA Toroidal Medical Transformer

VPM Series 3000VA Toroidal Medical Transformer

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The VPM Series 3000VA Toroidal Medical Transformer is a high-performance power solution designed for reliable operation in medical environments. With primary voltage options of 208V or 240V AC at 50/60 Hz, dual secondary outputs for parallel or series connectivity, and Class F insulation with 155°C temperature rating, this transformer ensures low leakage current and stray fields. It meets industry standards like CE and CRU®US, offering flexibility with both 240V CT at 12.50A and 120V at 25.0A secondary voltage configurations. The transformer's compact 240mm outside diameter and 25kg weight make it suitable for various medical equipment applications.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
3000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
140 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
240 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
3000 V·A
Specifications Secondary Voltage In Parallel
120 V at 25.0 A
Specifications Secondary Voltage In Series
240 V CT at 12.50 A
Specifications Regulation
1.5 %
Specifications Temperature Rise
50 ºC
Specifications Weight
25 kg
