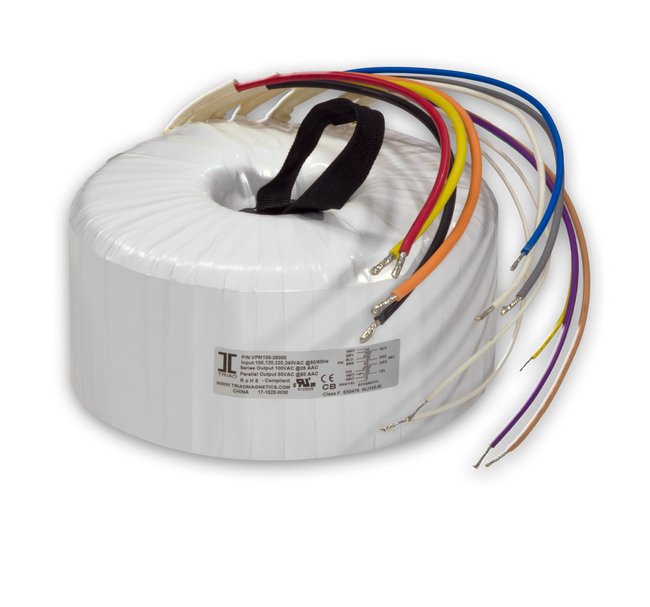

VPM Series 5000 V·A Toroidal Medical Transformer
VPM Series 5000 V·A Toroidal Medical Transformer
SKU:POW-1e626f
Experience precise power with the VPM Series 5000 V·A Toroidal Medical Transformer. Ensuring safety and efficiency in medical applications.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
VPM Series 5000 V·A Toroidal Medical Transformer
$789.99
Quantity: 1
Claim Your Seller Account
VPM Series 5000 V·A Toroidal Medical Transformer
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series 5000 V·A Toroidal Medical Transformer is designed for precision and reliability in medical applications. With dual secondary voltages suitable for parallel or series connection, it offers exceptional electrical performance with low leakage currents and stray fields. This Class F insulation transformer provides a dielectric isolation of 4 kV for 60 seconds, ensuring safety and efficiency in operation. Measuring 320mm in diameter and weighing 41kg, this transformer meets CE and CRU®US standards, making it ideal for medical equipment requiring high power efficiency and reliability.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
5000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
148 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
320 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
5000 V·A
Specifications Secondary Voltage In Parallel
120 V at 41.60 A
Specifications Secondary Voltage In Series
240 V CT at 20.80 A
Specifications Regulation
1.4 %
Specifications Temperature Rise
50 ºC
Specifications Weight
41 kg
