VPM Series Medical Toroidal Power Transformer - 100 V·A

VPM Series Medical Toroidal Power Transformer - 100 V·A

POW-c09026

Reliable VPM Series Medical Toroidal Transformer for medical equipment applications with Class F insulation, dual secondary outputs, and 4KV dielectric isolation.

$189.99
$189.99
Sale

Initiate Order

VPM Series Medical Toroidal Power Transformer - 100 V·A

VPM Series Medical Toroidal Power Transformer - 100 V·A

$189.99

Quantity: 1

Claim Your Seller Account

VPM Series Medical Toroidal Power Transformer - 100 V·A

VPM Series Medical Toroidal Power Transformer - 100 V·A

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

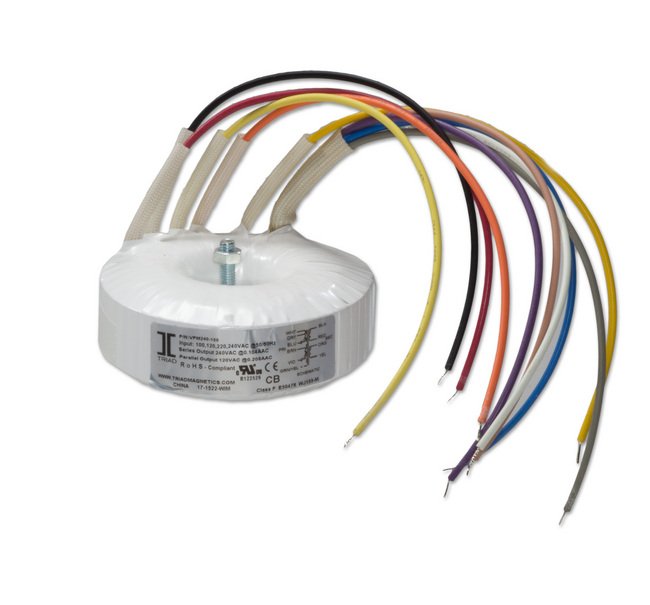

The VPM Series Toroidal Medical Transformer is a high-quality power solution designed for medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V at 50/60Hz, this transformer offers dual secondary outputs for parallel or series connections. It complies with Class F insulation and provides exceptional dielectric isolation of 4KV for 60 seconds. Featuring low leakage current and stray fields, this transformer ensures reliable and safe power distribution in medical environments.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
100 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
15 V | 30 V
Specifications Outside Diameter
96 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical

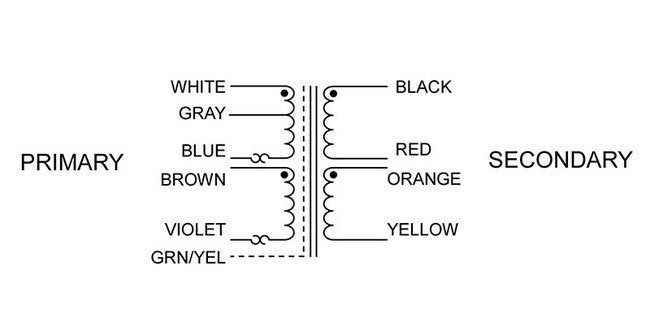

Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
100 V·A
Specifications Secondary Voltage In Parallel
15 V at 6.66 A
Specifications Secondary Voltage In Series
30 V CT at 3.33 A
Specifications Regulation
8.5 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.2 kg
