VPM Series Medical Toroidal Transformer - 2500 VA

VPM Series Medical Toroidal Transformer - 2500 VA

POW-4e9168

Enhance your power efficiency with the VPM Series Medical Toroidal Transformer - 2500 VA, designed for precision and compliance.

$489.99
$489.99
Sale

Initiate Order

VPM Series Medical Toroidal Transformer - 2500 VA

VPM Series Medical Toroidal Transformer - 2500 VA

$489.99

Quantity: 1

Claim Your Seller Account

VPM Series Medical Toroidal Transformer - 2500 VA

VPM Series Medical Toroidal Transformer - 2500 VA

$489.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

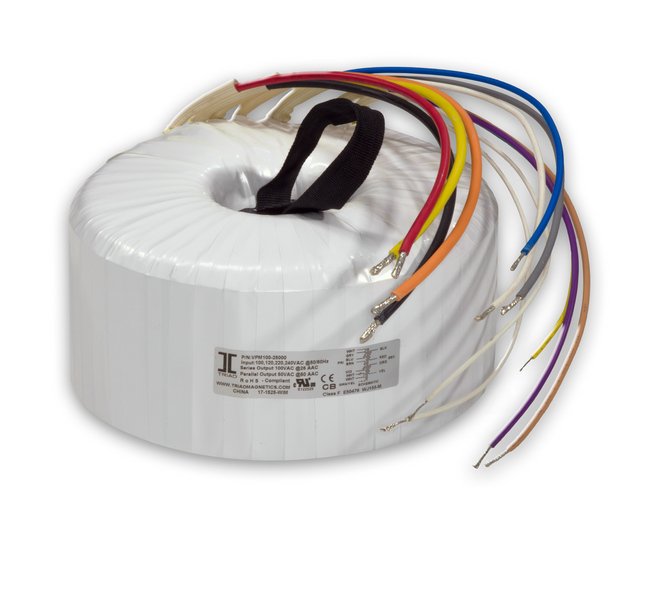

The VPM Series Toroidal Medical Transformer is a high-performance power solution suitable for a range of applications, offering primary voltage options of 100, 120, 220, or 240 VAC and secondary dual connections for parallel or series setups. With an Insulation Class of Class F, dielectric isolation of 4kV, and compliance with CE, CRUUS, and medical safety standards, this transformer ensures low leakage current, low stray fields, and reliable performance. Custom designs available upon request to meet specific institutional procurement needs.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
2500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
120 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
50 V | 100 V
Specifications Outside Diameter
215 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
2500 V·A
Specifications Secondary Voltage In Parallel
50 V at 50.0 A
Specifications Secondary Voltage In Series
100 V CT at 25.0 A
Specifications Regulation
1.9 %
Specifications Temperature Rise
55 ºC
Specifications Weight
20 kg
