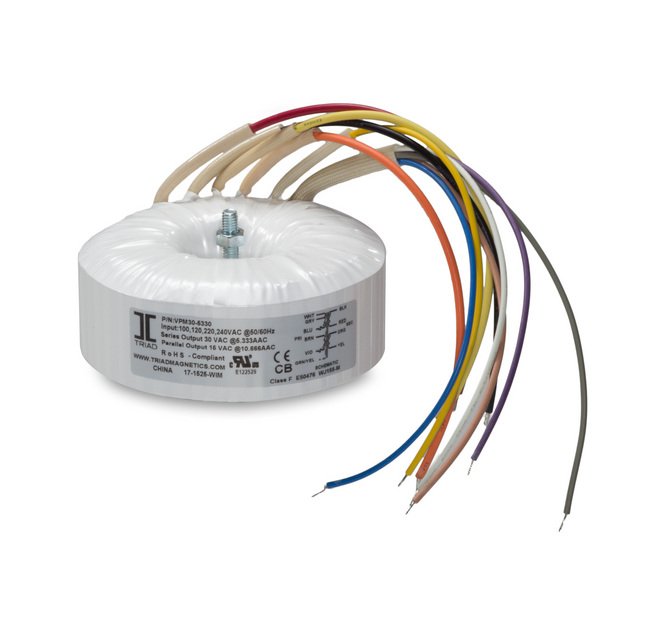

VPM Series Medical Toroidal Transformer 250VA
VPM Series Medical Toroidal Transformer 250VA
SKU:POW-a7acc5
Versatile VPM Series 250VA Toroidal Medical Transformer with Class F insulation, CE & CRUUS compliant.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
VPM Series Medical Toroidal Transformer 250VA
$149.99
Quantity: 1
Claim Your Seller Account
VPM Series Medical Toroidal Transformer 250VA
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series Toroidal Medical Transformer is a reliable power solution designed for medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V and secondary voltages of 24V and 48V, this transformer offers versatility for various setups. Featuring Class F insulation, 4KV dielectric isolation, and compliance with CE and CRUUS standards, it ensures safety and reliability. With low leakage current and minimal stray fields, this transformer is ideal for medical environments where precision and efficiency are paramount.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
250 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
60 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
24 V | 48 V
Specifications Outside Diameter
123 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
250 V·A
Specifications Secondary Voltage In Parallel
24 V at 10.4 A
Specifications Secondary Voltage In Series
48 V CT at 5.20 A
Specifications Regulation
6.2 %
Specifications Temperature Rise
55 ºC
Specifications Weight
2.5 kg
