VPM Series Toroidal Medical Transformer - 1000 V·A Power

VPM Series Toroidal Medical Transformer - 1000 V·A Power

POW-a84408

Versatile and reliable medical transformer with dual secondary voltages and Class F insulation. Meets CE and CRU®US standards.

$289.99
$289.99
Sale

Initiate Order

VPM Series Toroidal Medical Transformer - 1000 V·A Power

VPM Series Toroidal Medical Transformer - 1000 V·A Power

$289.99

Quantity: 1

Claim Your Seller Account

VPM Series Toroidal Medical Transformer - 1000 V·A Power

VPM Series Toroidal Medical Transformer - 1000 V·A Power

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

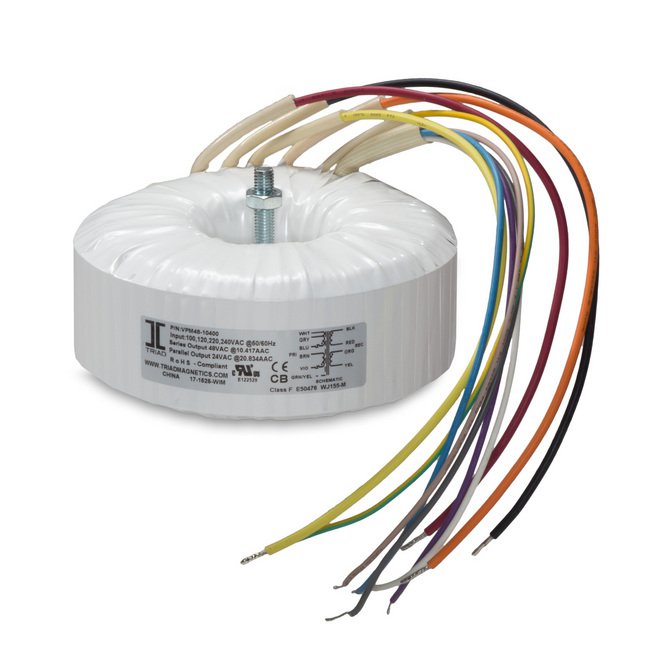

The VPM Series Toroidal Medical Transformer offers versatile primary voltage options (100, 120, 220, 240 VAC) with dual secondary voltages for parallel or series connection. It boasts Class F insulation, 4kV dielectric isolation, low leakage current, and low stray fields. With CE and CRU®US certifications, this transformer meets stringent industry standards and is ideal for medical applications requiring safety and reliability.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
1000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
74 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
50 V | 100 V
Specifications Outside Diameter
183 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
1000 V·A
Specifications Secondary Voltage In Parallel
50 V at 20.0 A
Specifications Secondary Voltage In Series
100 V CT at 10.0 A
Specifications Regulation
3.1 %
Specifications Temperature Rise
50 ºC
Specifications Weight
8.5 kg
