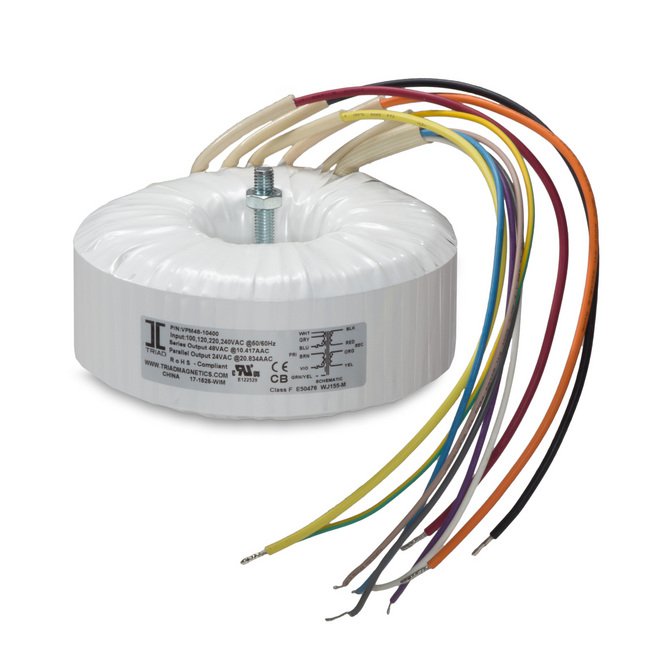

VPM Series Toroidal Medical Transformer - 1000 VA
VPM Series Toroidal Medical Transformer - 1000 VA
SKU:POW-b24d75
Reliable VPM Series Toroidal Medical Transformer with Class F insulation, dual voltage options, and low leakage current for critical applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
VPM Series Toroidal Medical Transformer - 1000 VA
$299.99
Quantity: 1
Claim Your Seller Account
VPM Series Toroidal Medical Transformer - 1000 VA
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series Toroidal Medical Transformer offers exceptional electrical performance for a wide range of applications. With primary voltage options of 100, 120, 220, or 240 VAC and secondary dual voltage configurations for parallel or series connection, this transformer ensures versatility and reliability. Featuring Class F insulation, dielectric isolation of 4kV, low leakage current, and low stray fields, it meets stringent industry standards for safety and efficiency. Ideal for medical equipment and other critical systems, this transformer delivers consistent power supply with minimal temperature rise and reliable operation.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
1000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
74 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
24 V | 48 V
Specifications Outside Diameter
183 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
1000 V·A
Specifications Secondary Voltage In Parallel
24 V at 41.66 A
Specifications Secondary Voltage In Series
48 V CT at 20.83 A
Specifications Regulation
3.0 %
Specifications Temperature Rise
50 ºC
Specifications Weight
8.5 kg
