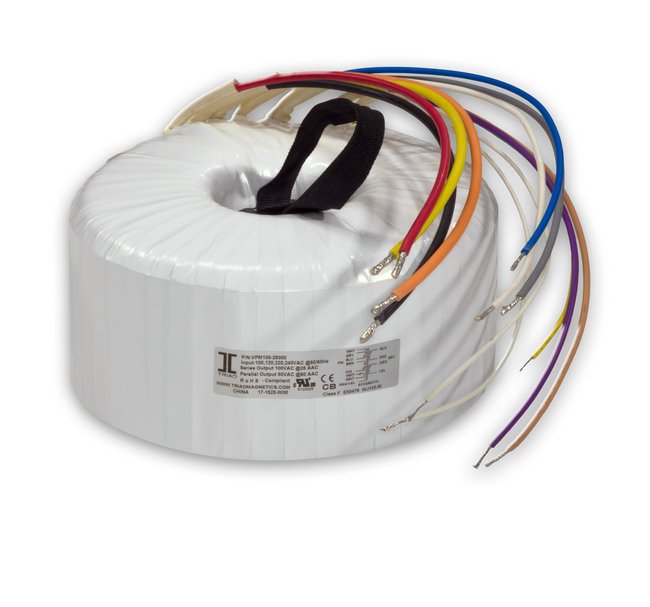

VPM Series Toroidal Medical Transformer - 10000 VA Power Capacity
VPM Series Toroidal Medical Transformer - 10000 VA Power Capacity
SKU:POW-9c601f
Reliable VPM Series Toroidal Medical Transformer with 10000 VA capacity, dual secondary voltages, and Class F insulation. CE & CRU®US certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
VPM Series Toroidal Medical Transformer - 10000 VA Power Capacity
$899.99
Quantity: 1
Claim Your Seller Account
VPM Series Toroidal Medical Transformer - 10000 VA Power Capacity
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series Toroidal Medical Transformer is a reliable power solution designed for medical equipment applications. With primary voltage options of 208V or 240V and dual secondary voltages for parallel or series connection, this transformer offers Class F insulation, 4kV dielectric isolation, low leakage current, and low stray fields. It boasts an electrical rating of 10000 VA, 0.7% typical regulation, and a typical temperature rise of 45°C. Industry standards compliance includes CE and CRU®US certifications. Custom designs are available to meet specific requirements.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
10000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
140 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
416 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
10000 V·A
Specifications Secondary Voltage In Parallel
120 V at 83.20 A
Specifications Secondary Voltage In Series
240 V CT at 41.60 A
Specifications Regulation
0.7 %
Specifications Temperature Rise
45 ºC
Specifications Weight
91 kg
