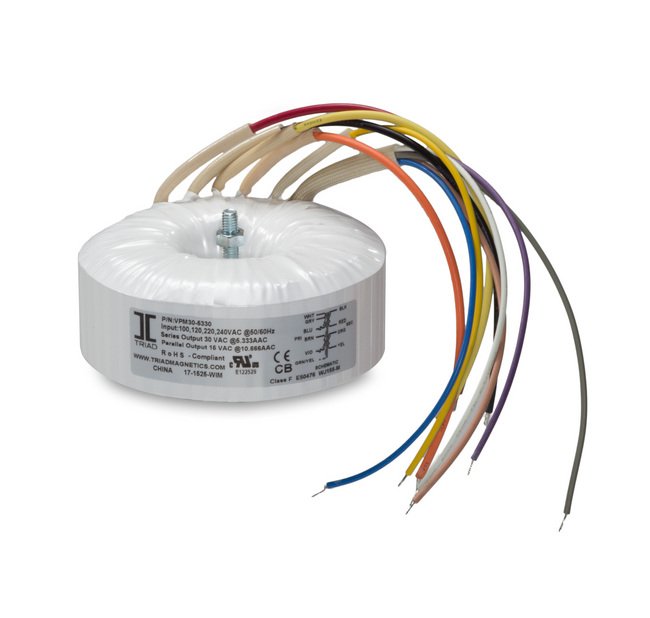

• VPM Series Toroidal Medical Transformer - 160 V·A - Image 1
  • VPM Series Toroidal Medical Transformer - 160 V·A - Image 2
  • VPM Series Toroidal Medical Transformer - 160 V·A - Image 3
1 3
Triad Magnetics →

VPM Series Toroidal Medical Transformer - 160 V·A

VPM Series Toroidal Medical Transformer - 160 V·A

POW-cfa8fd

Reliable VPM Series Toroidal Medical Transformer - 160 V·A for consumer & institutional needs. Class F insulation, 4 KV dielectric isolation, & industry-certified.

$199.99
$199.99
Sale

Initiate Order

VPM Series Toroidal Medical Transformer - 160 V·A

VPM Series Toroidal Medical Transformer - 160 V·A

$199.99

Quantity: 1

Claim Your Seller Account

VPM Series Toroidal Medical Transformer - 160 V·A

VPM Series Toroidal Medical Transformer - 160 V·A

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The VPM Series Toroidal Medical Transformer is a versatile and reliable power solution suitable for both consumer and institutional needs. With primary voltage options of 100/120/220/240 VAC and 50/60 Hz frequency, this transformer offers dual secondary connections for parallel or series connection flexibility. Featuring Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, it ensures safe and efficient operation. This transformer meets industry standards including CE and CRU®US certifications, making it ideal for medical applications.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
15 V | 30 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
15 V at 10.66 A
Specifications Secondary Voltage In Series
30 V CT at 5.33 A
Specifications Regulation
7.9 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
