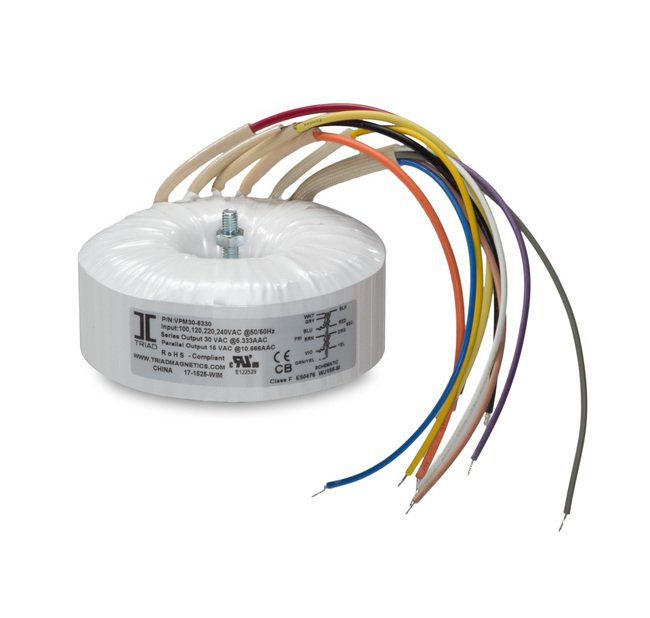

VPM Series Toroidal Medical Transformer - 250 VA
VPM Series Toroidal Medical Transformer - 250 VA
SKU:POW-1f5de6
Efficient & compliant medical transformer for precise power distribution in healthcare facilities.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
VPM Series Toroidal Medical Transformer - 250 VA
$129.99
Quantity: 1
Claim Your Seller Account
VPM Series Toroidal Medical Transformer - 250 VA
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series Toroidal Medical Transformer is a reliable power solution designed for medical equipment applications. With primary voltage options of 100, 120, 220, or 240 VAC at 50/60 Hz and secondary voltage configurations for parallel or series connections, this transformer ensures efficient power distribution. It boasts Class F insulation, 4 kV dielectric isolation, low leakage currents, and minimal stray fields. Meeting CE and CRU US standards, this transformer is ideal for medical environments requiring safety and reliability.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
250 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
60 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
6 V | 12 V
Specifications Outside Diameter
123 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
250 V·A
Specifications Secondary Voltage In Parallel
6.0 V at 41.60 A
Specifications Secondary Voltage In Series
12 V CT at 20.8 A
Specifications Regulation
6.2 %
Specifications Temperature Rise
55 ºC
Specifications Weight
2.5 kg
