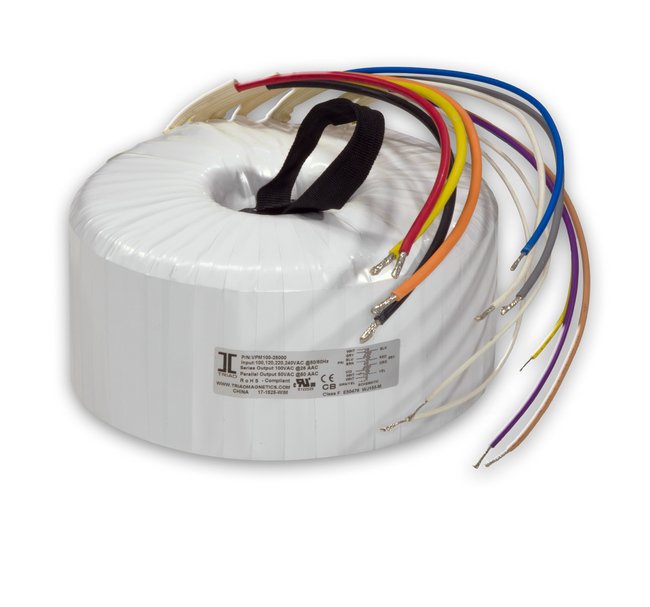

• VPM Series Toroidal Medical Transformer - 6750 V·A - Image 1
  • VPM Series Toroidal Medical Transformer - 6750 V·A - Image 2
  • VPM Series Toroidal Medical Transformer - 6750 V·A - Image 3
1 3
Triad Magnetics →

VPM Series Toroidal Medical Transformer - 6750 V·A

VPM Series Toroidal Medical Transformer - 6750 V·A

POW-c93d86

High-performance VPM Series Toroidal Medical Transformer for medical equipment, CE and CRU®US standards compliant.

$499.99
$499.99
Sale

Initiate Order

VPM Series Toroidal Medical Transformer - 6750 V·A

VPM Series Toroidal Medical Transformer - 6750 V·A

$499.99

Quantity: 1

Claim Your Seller Account

VPM Series Toroidal Medical Transformer - 6750 V·A

VPM Series Toroidal Medical Transformer - 6750 V·A

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The VPM Series Toroidal Medical Transformer is engineered for reliable power conversion in medical equipment applications. With primary voltage options of 208V or 240V AC and a secondary voltage configuration suitable for parallel or series connection, this Class F insulation transformer ensures exceptional safety and performance. Meeting CE and CRU®US standards, this transformer offers a dielectric isolation of 4kV and low leakage current for enhanced operational efficiency.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
6750 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
140 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
310 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
6750 V·A
Specifications Secondary Voltage In Parallel
120 V at 56.20 A
Specifications Secondary Voltage In Series
240 V CT at 28.10 A
Specifications Regulation
0.9 %
Specifications Temperature Rise
45 ºC
Specifications Weight
55 kg
