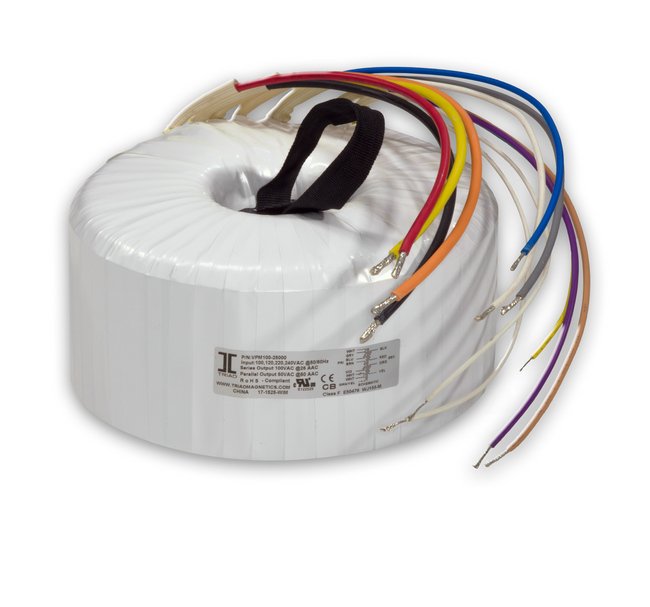

VPM Series Toroidal Medical Transformer - 7500 VA
VPM Series Toroidal Medical Transformer - 7500 VA
SKU:POW-721107
7500 VA Toroidal Medical Transformer with dual secondary voltage options, Class F insulation, and industry-standard compliance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
VPM Series Toroidal Medical Transformer - 7500 VA
$899.99
Quantity: 1
Claim Your Seller Account
VPM Series Toroidal Medical Transformer - 7500 VA
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VPM Series Toroidal Medical Transformer delivers exceptional performance with a primary electrical rating of 7500 VA, ideal for medical equipment. Featuring dual secondary voltage options for parallel or series connection, Class F insulation, and 4 kV dielectric isolation, ensuring low leakage current and stray fields. With an outside diameter of 330mm and a weight of 62kg, this transformer meets industry standards like CE and CRU®US, making it a reliable choice for medical applications.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
7500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
140 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
330 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
7500 V·A
Specifications Secondary Voltage In Parallel
120 V at 62.40 A
Specifications Secondary Voltage In Series
240 V CT at 31.20 A
Specifications Regulation
0.9 %
Specifications Temperature Rise
45 ºC
Specifications Weight
62 kg
