Wall Mount Jib Crane Model 360 TDC - 1000 lbs Capacity
Wall Mount Jib Crane Model 360 TDC - 1000 lbs Capacity
SKU:REL-353a8e
Experience seamless 360° rotation with the Wall Mount Jib Crane Model 360 TDC - Perfect for heavy-duty operations.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Wall Mount Jib Crane Model 360 TDC offers a seamless 360° rotation, eliminating the need for costly foundation modifications. With a robust steel structure and double knuckle bearing design, it ensures smooth operation. Transfer loads effortlessly between bays, simplifying operations with its heavy-duty performance. This crane is designed for high-cycle heavy-duty use, making it ideal for industrial settings seeking efficiency and reliability.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

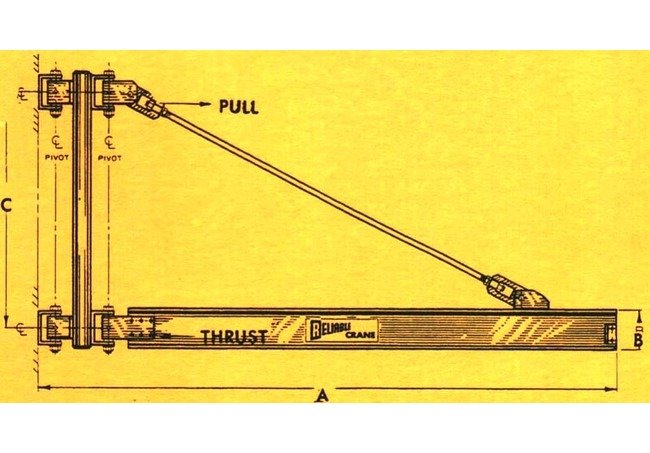

Specifications Boom Fitting D
3'-6"
Specifications Boom Size B
6 inches
Specifications Capacity
1000 lbs.
Specifications Hinge Centers C
4'-6"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Thrust And Pull
4030 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
480 lbs.
