Wall Mount P3Link Patch Panel Enclosures for Up to 12 Mini Adapter Plate (MAP)
Wall Mount P3Link Patch Panel Enclosures for Up to 12 Mini Adapter Plate (MAP)
SKU:PAT-a75569
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wall Mount P3Link Patch Panel Enclosures for Up to 12 Mini Adapter Plate (MAP)
$49.99
Quantity: 1
Claim Your Seller Account
Wall Mount P3Link Patch Panel Enclosures for Up to 12 Mini Adapter Plate (MAP)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Applications

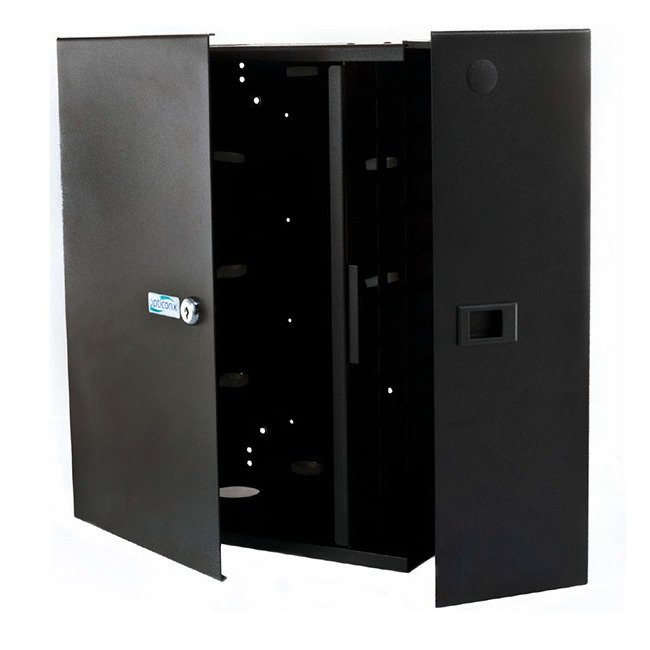

This wall mount patch panel enclosure is used in conjunction with Opticonx MAP series adapter plates and P3Link Xtreme cassettes. It houses up to 12 MAP adapter plates. It is wall mountable with a footprint of 16" High x 14" Wide.
Connector Panel
The connector panel accepts up to 12 MAP adapter plates or 12 P3Link Cassettes (up to 24 P3Link Xtreme cassettes when used with retrofit bracket kit P3XRF-2). Total maximum port density for LC connectors is 288 fibers.
Construction Field Assembly Requirements
The enclosure is shipped completely assembled for wall mounting.
Construction Finish
Epoxy Powder Coat, Black Textured Finish.
Construction Material
16 Gauge Cold Rolled Steel Body, and Doors.
Construction Material Thickness
16 gauge
Features Cable Entryexit
Two cable entry holes are located on the top and bottom of the enclosure. The top and bottom holes accept standard 1.75" connectors. One "U" shaped entry/exit slot is located on the user/patch side top and bottom. Dust caps are included for unused entry/exit holes.
Features Cable Management
Fiber optic cable management clips are installed in both the left and right side compartments. The cable management clips and compartment size are designed to route incoming cables to the fiber adapters and cassettes and the jumpers out of the top or bottom of the box.
Features Doors
The panel features double doors that isolate the technician compartment from the patch/user compartment. Both doors are lockable and are also removable for easy installation.
Features Mounting
The enclosure can be mounted on 3/4" plywood backer board through four (4) embossed mounting holes. When mounted the unit is 16.0" High x 14.0" Wide by 7.0" Deep.
Included Parts And Accessories
(2) - 1.75" Dust Caps(2) - 6" Cable Ties(2) - 1.75" Through Hole Grommets(1) - Port ID Label(1) - Laser Warning Label
Mechanical Specifications Dimensions Depth
7.0 in
Mechanical Specifications Dimensions Height
16.0 in
Mechanical Specifications Dimensions Weight
21.0 lb
Mechanical Specifications Dimensions Width
14.0 in
Specifications Type
Patch
