Product Specifications
Applications

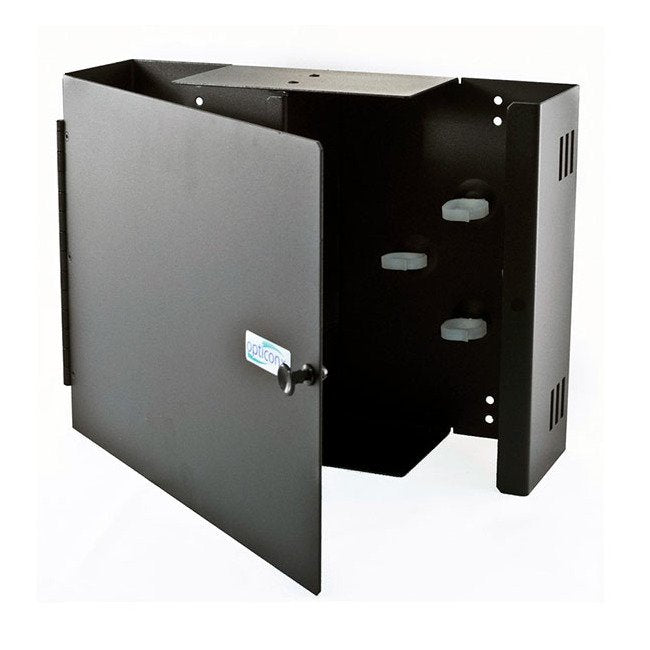

This wall mount patch panel enclosure is used in conjunction with Opticonx MAP series adapter plates and P3Link Xtreme cassettes when used with retrofit bracket kit P3XRF-2. It houses up to 2 MAP adapter plates. It is wall mountable with a footprint of 9.0" High x 12.0" Wide.
Connector Panel
The connector panel accepts up to 2 MAP adapter plates or 4 P3Link Cassettes (up to 4 P3Link Xtreme cassettes when used with retrofit bracket kit P3XRF-2). Total maximum port density for LC connectors is 48 fibers.
Construction Field Assembly Requirements
The enclosure is shipped completely assembled for wall mounting.
Construction Finish
Epoxy Powder Coat, Black Textured Finish.
Construction Material
16 Gauge Cold Rolled Steel Body, and Doors.
Construction Material Thickness
16 gauge
Features Cable Entryexit
Cable entry holes are located on the top and bottom of the enclosure on both the backbone and jumper patching side of the unit.
Features Cable Management
Fiber optic cable management clips are installed in both the left and right side compartments. The cable management clips and compartment size are designed to route incoming cables to the fiber adapters and cassettes and the jumpers out of the top or bottom of the box.
Features Doors
Single door, non-lockable door for access to both panel compartments.
Features Mounting
The enclosure can be mounted on 3/4" plywood backer board through four (4) embossed mounting holes. When mounted the unit is 9.0" High x 12.0" Wide by 3.5" Deep.
Included Parts And Accessories
(2) - 6" Cable Ties(1) - Port ID Label(1) - Laser Warning Label
Mechanical Specifications Dimensions Depth
3.5 in
Mechanical Specifications Dimensions Height
9.0 in
Mechanical Specifications Dimensions Weight
7.0 lb
Mechanical Specifications Dimensions Width
12.0 in
Specifications Type
Patch
