Wall Mount P3Link Patch Panel Enclosures for Up to 8 Mini Adapter Plate (MAP)

Name: Wall Mount P3Link Patch Panel Enclosures for Up to 8 Mini Adapter Plate (MAP)
Brand: Opticonx
SKU: PAT-e9ba5a
Price: 49.99 USD
Availability: OutOfStock

SKU:PAT-e9ba5a

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Applications

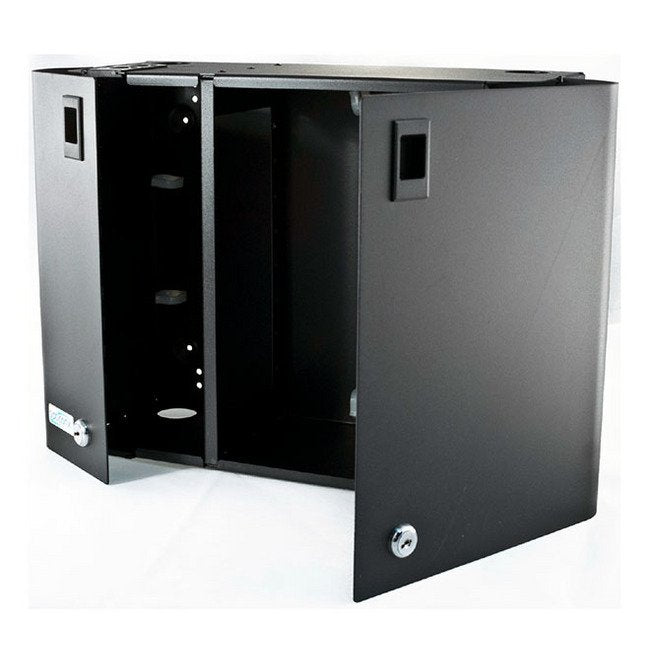

This wall mount patch panel enclosure is used in conjunction with Opticonx MAP series adapter plates and P3Link Xtreme cassettes. It houses up to 8 MAP adapter plates. It is wall mountable with a footprint of 12" High x 15" Wide.

Connector Panel

The connector panel accepts up to 8 MAP adapter plates or 8 P3Link Cassettes (up to 16 P3Link Xtreme cassettes when used with retrofit bracket kit P3XRF-2). Total maximum port density for LC connectors is 192 fibers.

Construction Field Assembly Requirements

The enclosure is shipped completely assembled for wall mounting.

Construction Finish

Epoxy Powder Coat, Black Textured Finish.

Construction Material

16 Gauge Cold Rolled Steel Body, and Doors.

Construction Material Thickness

16 gauge

Features Cable Entryexit

Two cable entry holes are located on the top and bottom of the enclosure. The top and bottom holes accept standard 1.75" connectors. One "U" shaped entry/exit slot is located on the user/patch side top and bottom. Dust caps are included for unused entry/exit holes.

Features Cable Management

Fiber optic cable management clips are installed in both the left and right side compartments. The cable management clips and compartment size are designed to route incoming cables to the fiber adapters and cassettes and the jumpers out of the top or bottom of the box.

Features Doors

The panel features double doors that isolate the technician compartment from the patch/user compartment. Both doors are lockable.

Features Mounting

The enclosure can be mounted on 3/4" plywood backer board through four (4) embossed mounting holes. When mounted the unit is 16.0" High x 14.0" Wide by 7.0" Deep.

Included Parts And Accessories

(2) - 1.75" Dust Caps(2) - 6" Cable Ties(2) - 1.75" Through Hole Grommets(1) - Port ID Label(1) - Laser Warning Label

Mechanical Specifications Dimensions Depth

6.0 in

Mechanical Specifications Dimensions Height

12.0 in

Mechanical Specifications Dimensions Weight

17.5 lb

Mechanical Specifications Dimensions Width

15.0 in

Specifications Type

Patch

Wall Mount P3Link Patch Panel Enclosures for Up to 8 Mini Adapter Plate (MAP)
