Wall Plug-In Power Supply, 24VAC @ 500mA, UL Level VI, 2m Cord, 5.5x2.1mm Connector
Wall Plug-In Power Supply, 24VAC @ 500mA, UL Level VI, 2m Cord, 5.5x2.1mm Connector
SKU:WAL-b9ebdf
Efficient Wall Plug-In Power Supply with 24VAC @ 500mA output, UL Level VI compliant, ideal for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wall Plug-In Power Supply, 24VAC @ 500mA, UL Level VI, 2m Cord, 5.5x2.1mm Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wall Plug-In Power Supply, 24VAC @ 500mA, UL Level VI, 2m Cord, 5.5x2.1mm Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

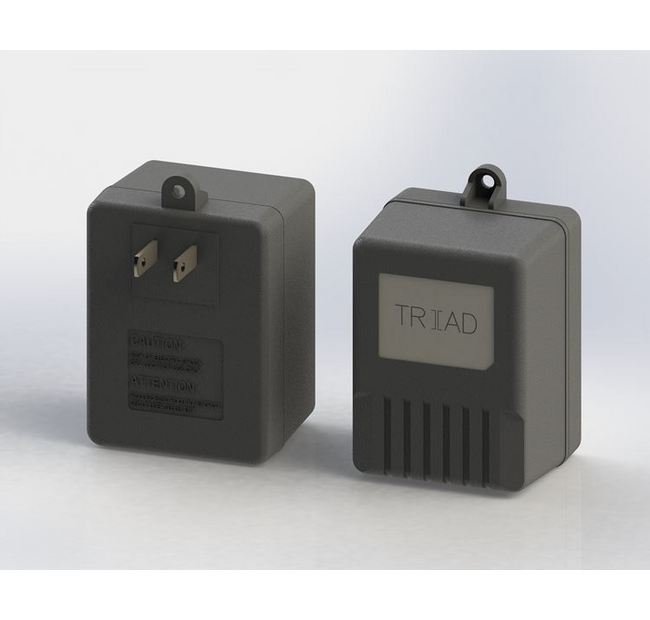

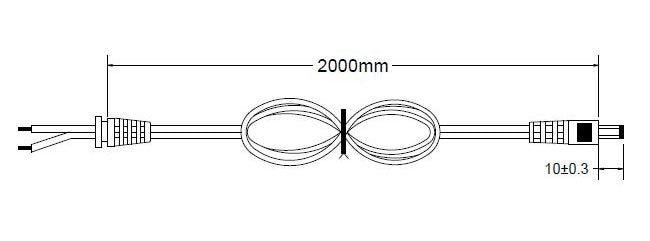

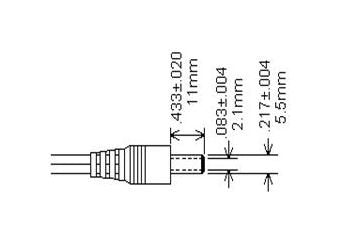

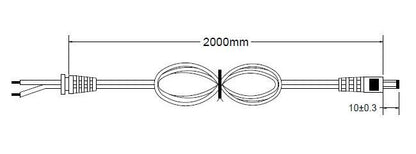

The Wall Plug-In Power Supply offers efficient and reliable power delivery with a 24VAC output at 500mA. It meets UL Level VI standards for energy efficiency and safety. With a 2-meter cord and a 5.5x2.1mm connector, this power supply is suitable for a range of applications. The thermoplastic molded enclosure enhances durability, while the compact design with mounting tabs allows for easy installation. Ideal for external power sources, this power supply ensures stable performance in a variety of environments.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

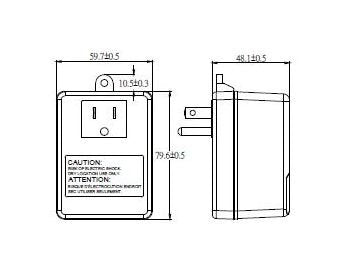

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
