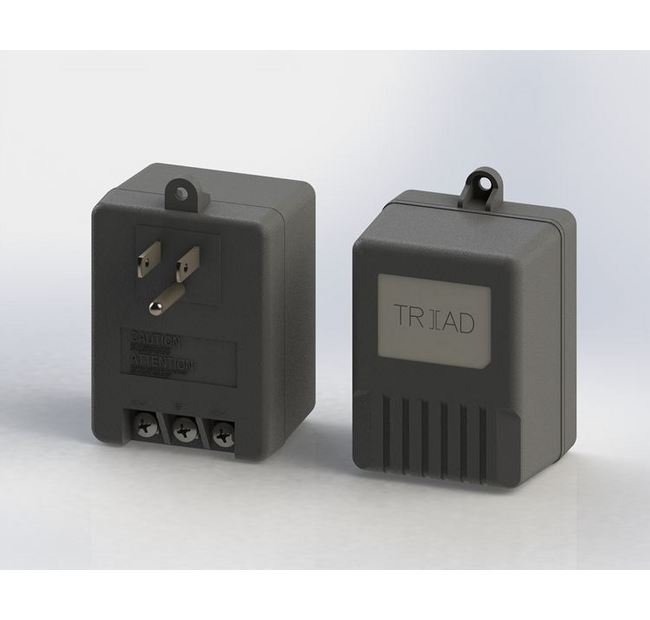

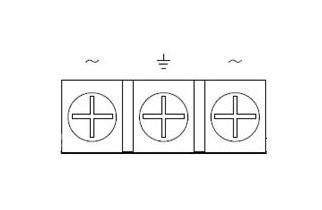

Wall Plug-In Power Supply, 6VAC @ 2000mA, UL Level VI, Screw Terminals with Pass Through Ground, Mounting Tab
Wall Plug-In Power Supply, 6VAC @ 2000mA, UL Level VI, Screw Terminals with Pass Through Ground, Mounting Tab
SKU:WAL-371d46
Reliable Wall Plug-In Power Supply, 6VAC @ 2000mA, UL Level VI, Screw Terminals, Mounting Tab - Ideal for external power source applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wall Plug-In Power Supply, 6VAC @ 2000mA, UL Level VI, Screw Terminals with Pass Through Ground, Mounting Tab
$29.99
Quantity: 1
Claim Your Seller Account
Wall Plug-In Power Supply, 6VAC @ 2000mA, UL Level VI, Screw Terminals with Pass Through Ground, Mounting Tab
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure uninterrupted power with our Wall Plug-In Power Supply featuring a 6VAC output at 2000mA. This Level VI energy-efficient supply includes UL certification, screw terminals for secure connections, pass-through ground capability, and a convenient mounting tab. With precise specifications and a compact design, this power supply is ideal for external power source applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
6.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 7.8 V
Specifications Secondary Output Current Ac
2000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
6 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
