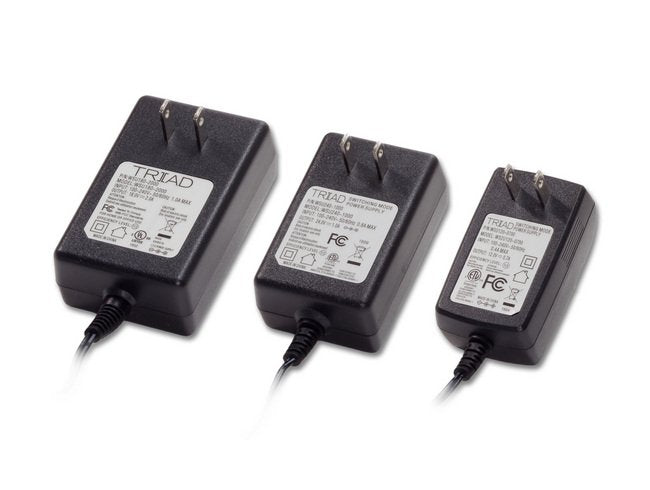

Enhance your product design process with our Triad prepackaged wall plug-in switch mode power supplies. Eliminate the need for internal cooling devices, reduce noise levels, size, and weight of your products. Our compact and enclosed power sources offer regulated output voltage, enhanced safety for sensitive circuits, and come in various voltages and power levels. Meeting Level IV and V efficiency standards, these supplies comply with EIAS 2007 energy efficiency requirements. With a convenient six-foot cord length, our power supplies are ideal for a range of applications.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

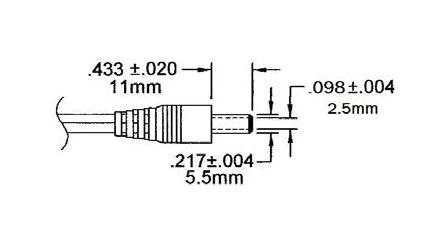

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
7.20 W
Specifications Output Current
0.80 A
Specifications Output Current Dc
0.80 A
Specifications Output Voltage Dc
9.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
