Wall Plug-In Switch Mode Power Supply - Regulated Output
Wall Plug-In Switch Mode Power Supply - Regulated Output
SKU:WAL-62c5c6
Streamline product design with our efficient wall plug-in power supplies. Regulated output, compact design, and safety features included.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wall Plug-In Switch Mode Power Supply - Regulated Output
$29.99
Quantity: 1
Claim Your Seller Account
Wall Plug-In Switch Mode Power Supply - Regulated Output
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience streamlined product design with our Triad wall plug-in power supplies. These efficient power sources eliminate the need for internal cooling, reducing noise levels and product weight. With regulated output voltage and various voltage/power options, these compact supplies ensure safety for sensitive circuits. Enclosed to prevent tampering, our supplies meet Level IV and V efficiency standards, EISA 2007 energy requirements, and offer extended cord lengths for convenience.
Product Specifications

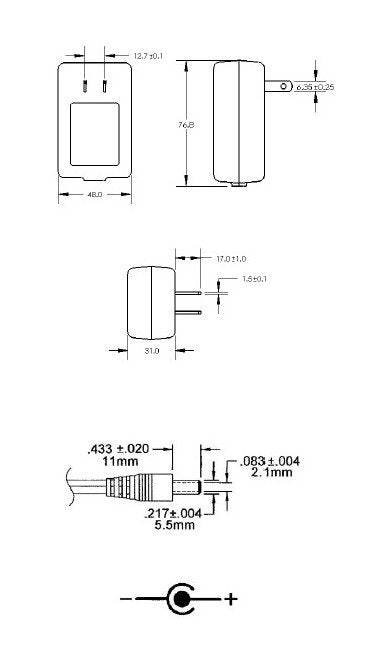

Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.8 mm
Case Dimensions Width W
1.88 in | 48.00 mm
Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
24.00 W
Specifications Output Current
3.2 A
Specifications Output Current Dc
3.2 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
