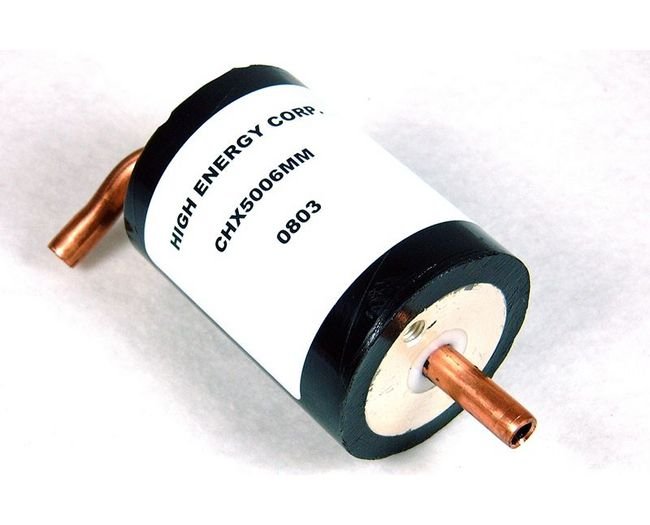

The CHX Series Water-Cooled Capacitors offer high-performance and reliable cooling solutions for precision electrical applications. With a capacitance range of 0.06 µF, ±10% capacitance tolerance, individually water-cooled design, and a dissipation factor of 0.1% maximum, these capacitors ensure stable operation up to +90 ºC. Featuring a compact diameter of 2 1/16 inches and a height of 2 13/16 inches, they are designed to meet stringent cooling requirements while maintaining optimal performance. Ideal for applications requiring efficient cooling and precise capacitance values, the CHX Series is a top choice for both consumer and institutional buyers.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
>0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

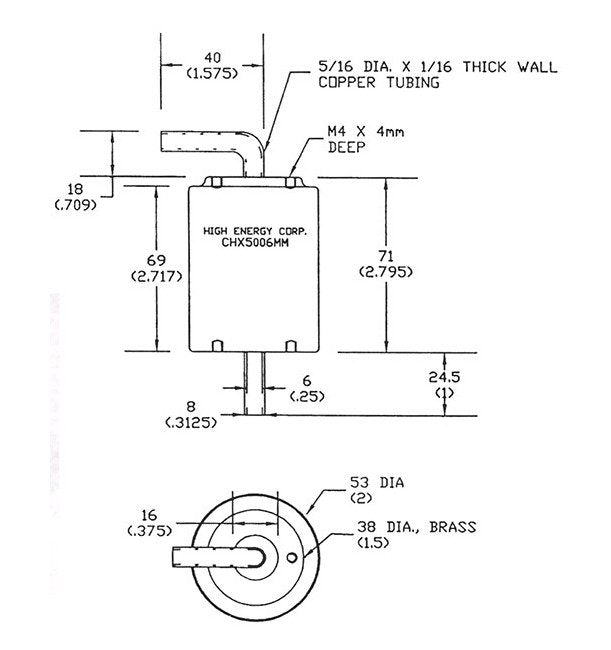

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
2 13/16 in | 71 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.36 kg | 0.79 lb
