Water-Cooled Ceramic Capacitors
Water-Cooled Ceramic Capacitors
SKU:WAT-3e752e
Maximize power with water-cooled ceramic capacitors for high-power RF equipment. Low dissipation factor Class I dielectric for reliable operation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Water-Cooled Ceramic Capacitors
$349.99
Quantity: 1
Claim Your Seller Account
Water-Cooled Ceramic Capacitors
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

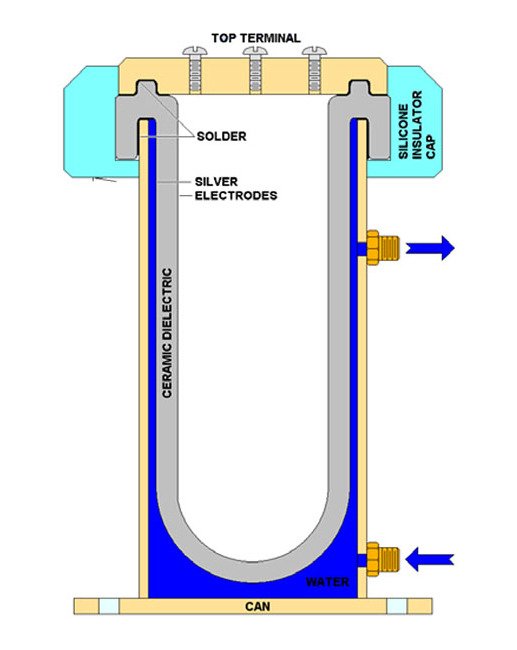

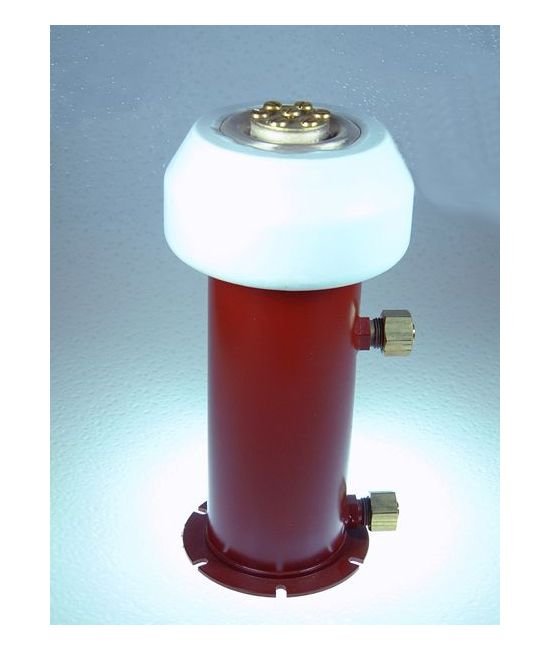

Experience peak performance with our Water-Cooled Ceramic Capacitors. Designed for high-power RF equipment, these large 'pot' style capacitors offer a current capacity of up to 300 Amperes and reactive power ratings of up to 4000 kVA. Featuring a low dissipation factor Class I dielectric and water-cooling for optimal thermodynamic efficiency, these capacitors ensure reliable operation at extreme power levels and frequencies. Ideal for applications like induction heating, dielectric heating, and high-frequency welding equipment.
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
400 to 10000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
10 kV | 12 kV | 14 kV | 16 kV | 18 kV | 20 kV | 22 kV | 25 kV
