Premium water-cooled ceramic capacitors for high-power RF equipment with 300A capacity and 4000 kVA ratings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Water-Cooled Ceramic Capacitors - 300A, 4000 kVA
$499.99
Quantity: 1
Claim Your Seller Account
Water-Cooled Ceramic Capacitors - 300A, 4000 kVA
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

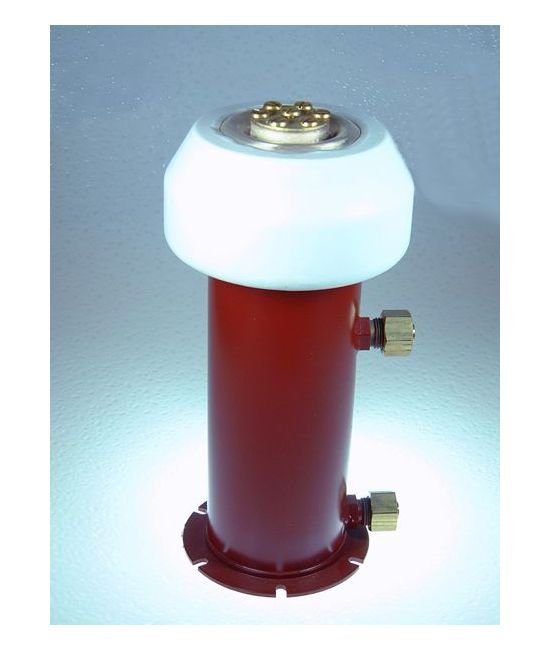

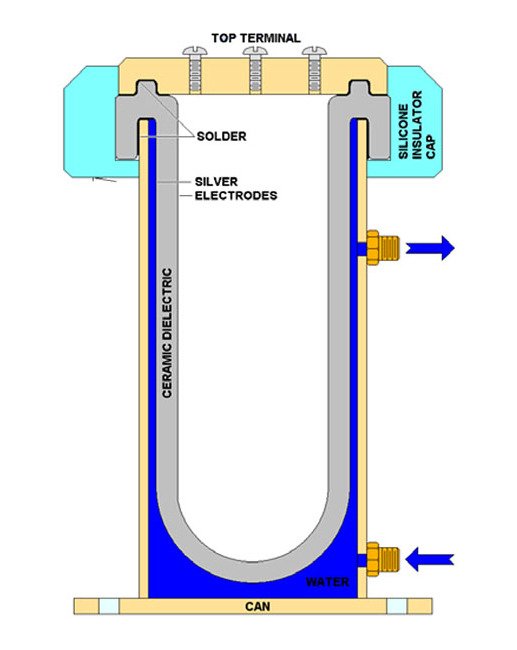

The PWC Water-Cooled Ceramic Capacitors are premium 'pot' style components designed for high-power RF equipment. With a current capacity of 300 Amperes and reactive power ratings up to 4000 kVA, these capacitors feature a low dissipation factor Class I dielectric and robust structural strength. The water-cooling system ensures high thermodynamic efficiency, enabling operation at extreme power levels and frequencies. Ideal for tank circuits in applications like induction heating and high-frequency welding, these capacitors offer exceptional performance and reliability.
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
7500 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
0.636 MHz
Specifications Fl
0.649 MHz
Specifications Imax Rms
300 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
3000 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
14 kV
