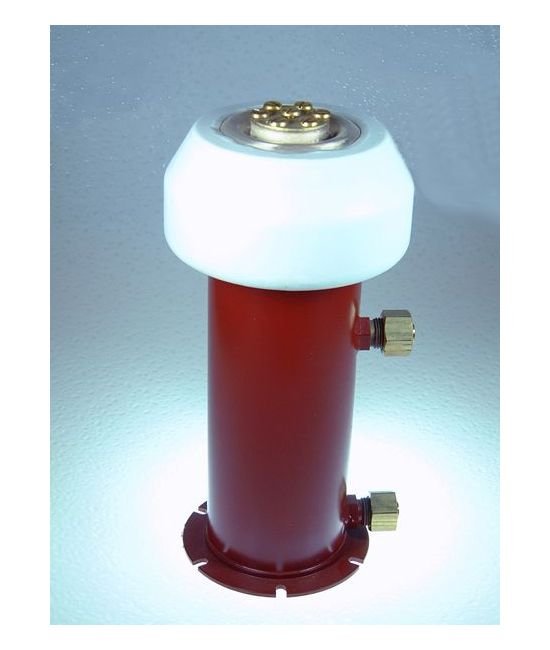

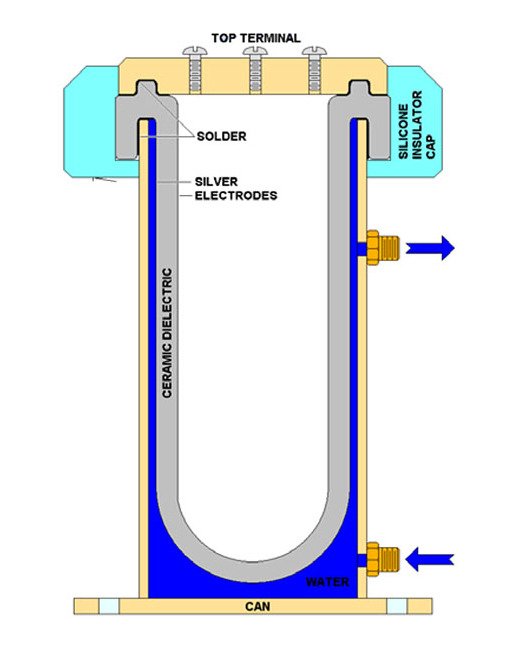

Upgrade your high-power RF equipment with our PWC Water-Cooled Ceramic Capacitors. These 'pot' style components offer current capacity up to 300 Amperes and maximum reactive power ratings of 4000 kVA. With a low dissipation factor Class I dielectric and the efficiency of water-cooling, they operate at extreme power levels and high frequency. Ideal for applications like induction heating and high-frequency welding, these capacitors deliver exceptional performance and durability.
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
4000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
0.994 MHz
Specifications Fl
0.776 MHz
Specifications Imax Rms
250 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
2500 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
16 kV
