High-capacity water-cooled ceramic capacitors for extreme power RF equipment, offering 300A current capacity & 4000kVA reactive power.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PWC Water-Cooled Ceramic Capacitors are designed for high power RF equipment applications, offering a current capacity of up to 300 Amperes and maximum reactive power ratings of 4000 kVA. Featuring a Class I dielectric with low dissipation factor, these components boast superior structural strength and high thermodynamic efficiency with water-cooling, enabling operation at extreme power levels and frequencies. Ideal for tank circuit use, these capacitors find common applications in induction heating, dielectric heating, and high-frequency welding equipment.

Product Specifications

Cooling Requirements Closed System Derating

Increase Cooling Flow by 20% when antifreeze is used

Cooling Requirements Cooling Water Pressure

Not to exceed 60 PSIA (132 feet of H2O)

Cooling Requirements Inlet Water Temperature

30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained

Cooling Requirements Maximum Capacitor Temperature

The maximum allowable temperature of the Inner Terminal is 100ºC.

Cooling Requirements Maximum Temperature Rise

The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.

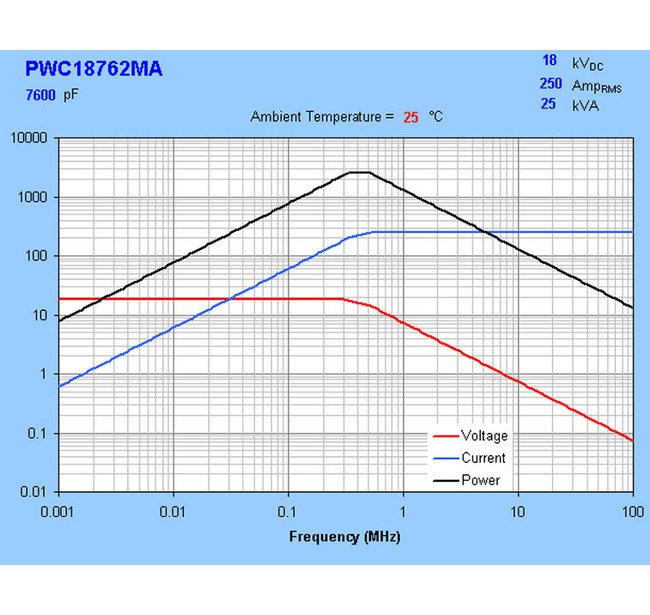

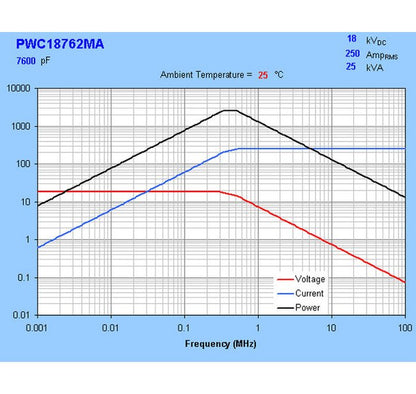

Specifications Cap

7600 pF

Specifications Capacitance Tolerance

±20% (Standard) | ±10% (Optional)

Specifications Dielectric Strength

Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

Specifications Fh

0.523 MHz

Specifications Fl

0.323 MHz

Specifications Imax Rms

250 A

Specifications Maximum Dissipation Factor

0.05%

Specifications Minimum Insulation Resistance

10000 MΩ

Specifications Operating Temperature Range

-55 to +85 ºC

Specifications Smax

2500 kV·A

Specifications Standard Markings

"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code

Specifications Storage Temperature Range

-55 to 125 ºC

Specifications Vmax Dc

18 kV
