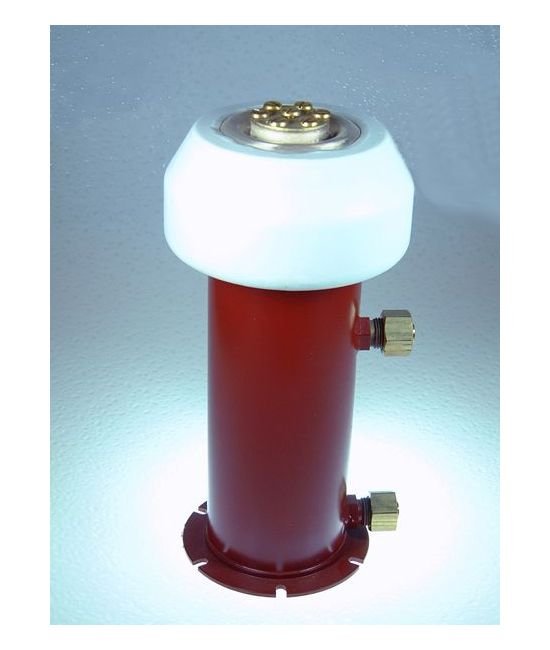

Water-Cooled Ceramic Capacitors - PWC Series
Water-Cooled Ceramic Capacitors - PWC Series
SKU:CER-2b55b2
High-performance water-cooled ceramic capacitors for high-power RF applications. Current capacity up to 300A & reactive power ratings up to 4000 kVA.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Water-Cooled Ceramic Capacitors - PWC Series
$599.99
Quantity: 1
Claim Your Seller Account
Water-Cooled Ceramic Capacitors - PWC Series
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

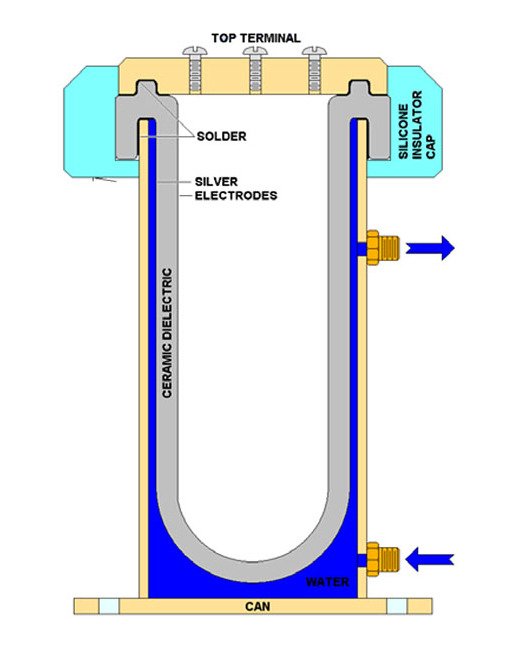

Experience exceptional power handling with the PWC Series Water-Cooled Ceramic Capacitors. Designed for high-power RF applications, these capacitors offer a current capacity of up to 300 Amperes and reactive power ratings of 4000 kVA. Featuring Class I dielectric with superior structural strength and efficient water-cooling, they operate seamlessly at high power levels and frequencies. Ideal for induction and dielectric heating, high-frequency welding, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
2000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
1.19 MHz
Specifications Fl
1.22 MHz
Specifications Imax Rms
150 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
1500 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
14 kV
