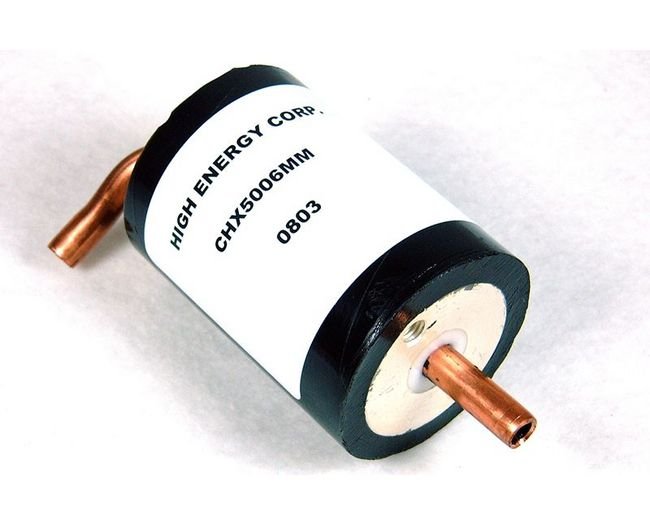

Water-Cooled Metallized Film Capacitors - CHX Series
Water-Cooled Metallized Film Capacitors - CHX Series
SKU:MET-618df6
High-performance water-cooled capacitors with up to 0.069 µF capacitance range, ±10% tolerance, and efficient cooling for superior reliability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Water-Cooled Metallized Film Capacitors - CHX Series
$89.99
Quantity: 1
Claim Your Seller Account
Water-Cooled Metallized Film Capacitors - CHX Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHX Series Water-Cooled Capacitors offer a cutting-edge solution for high-performance electrical applications. With a capacitance range of up to 0.069 µF, these capacitors are designed for precision and reliability. Operating with a capacitance tolerance of ±10%, they maintain stability under varying conditions. Individually water-cooled and with a maximum dissipation factor of 0.1%, these capacitors ensure optimal performance. Meeting industry standards, the CHX Series guarantees efficiency and durability, making it a top choice for critical electrical systems.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
Up to 0.069 µF
Specifications Capacitance Range
Up to 0.069 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

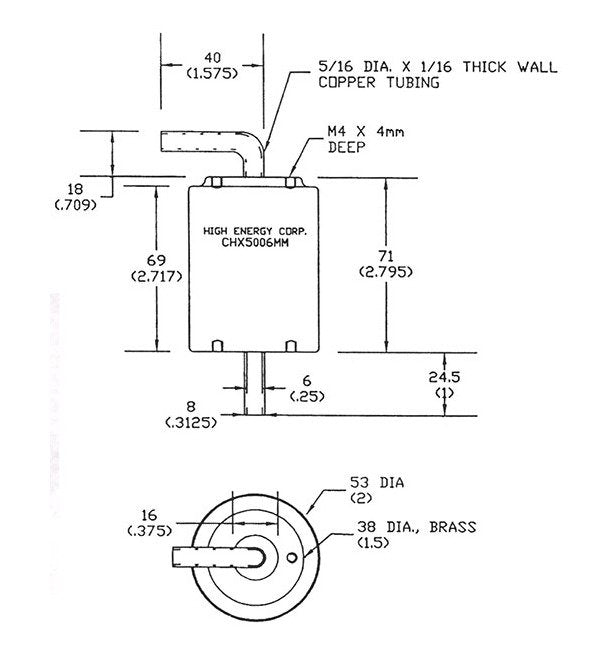

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
2 13/16 in | 71 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.36 kg | 0.79 lb
