Waterproof 10-Conductor Miniature Breakaway Jack
Waterproof 10-Conductor Miniature Breakaway Jack
SKU:7AN-d09c12
Durable mini jack with 10 conductors, ideal for ruggedized applications. Gold-plated brass contacts, push-pull mating, -55 to 85°C temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Waterproof 10-Conductor Miniature Breakaway Jack
$29.99
Quantity: 1
Claim Your Seller Account
Waterproof 10-Conductor Miniature Breakaway Jack
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

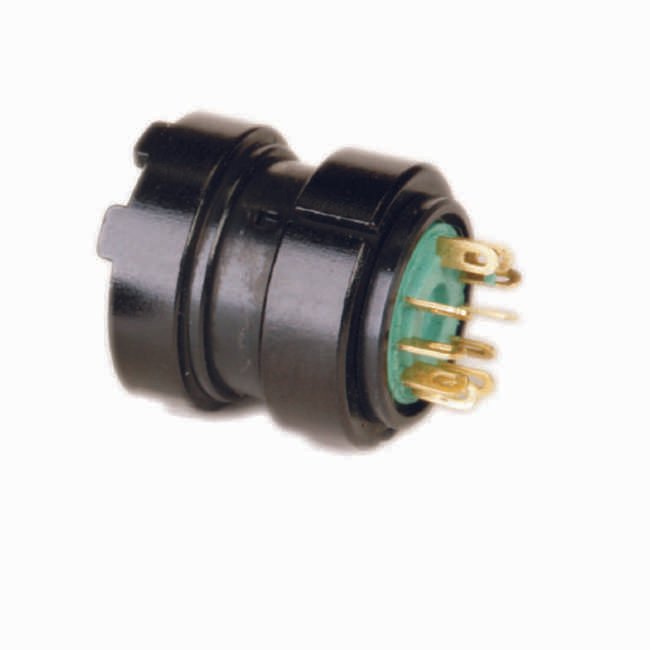

The Waterproof 10-Conductor Miniature Breakaway Jack is designed for ruggedized commercial and military applications. Featuring durable aluminum shell material with black anodized or black chrome plating, this mini jack ensures secure connections with gold-plated brass contacts. With an axial push-pull motion for mating and disengagement forces ranging from 8 to 14 lb, this jack offers reliability in harsh conditions. Meeting industry standards for 5000 mating cycles and a wide temperature range of -55 to 85°C, it provides consistent performance for demanding environments.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
10
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
