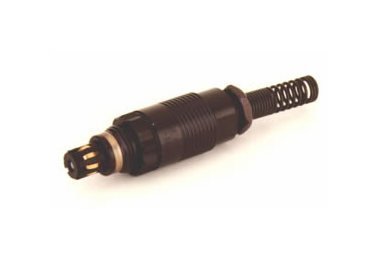

Waterproof Axial Plug Connector
Waterproof Axial Plug Connector
SKU:7AN-0ebf5d
High-performance Waterproof Axial Plug Connector for rugged commercial and military applications. Self-cleaning contacts, solder terminals, and reliable connections in harsh environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Waterproof Axial Plug Connector
$39.99
Quantity: 1
Claim Your Seller Account
Waterproof Axial Plug Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Waterproof Axial Plug Connector is a high-performance solution designed for ruggedized commercial and military applications. With 7 gold-plated BeCu contact conductors, black anodized aluminum shell, and axial push-pull mating, this connector ensures reliable connections in severe environments. It features self-cleaning molded-in contacts, solder terminals, wire strain relief, and a temperature range of -55 to 85°C. Ideal for C4I systems, military vehicles, and telecommunications equipment, this plug connector meets stringent durability and performance standards.
Product Specifications
Applications 0
C4I Systems Military Vehicles Commercial Aircraft Telecommunications Equipment Missiles and Ordnance Medical Equipment Commercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environments Watertight in up to 6 feet of water Molded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Designed for multiple cable diameters Miniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacks Panel mount versions are available for both front- and rear-mount panels Shielding is available in all connector choices All standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
