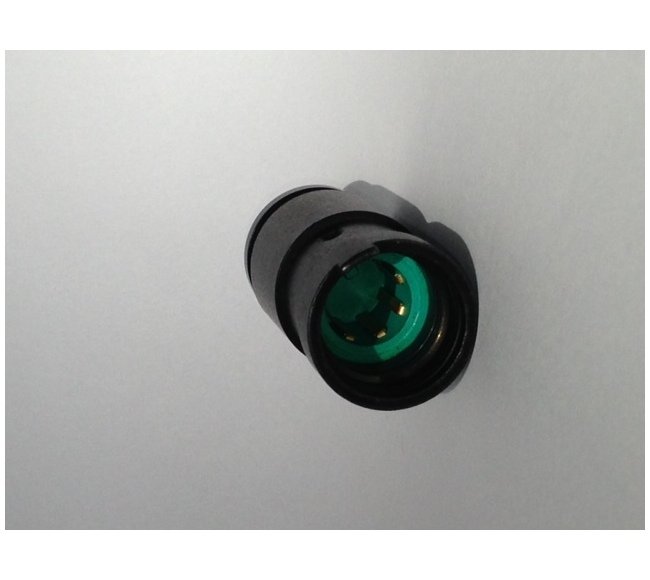

The Jack series of Waterproof Breakaway Connectors offers reliable and durable connectivity solutions for institutional and commercial applications. With features like insulation-piercing contacts, axial push-pull mating, and gold-plated brass contact material, these connectors are designed to meet the stringent requirements of ruggedized commercial and military environments. They are watertight up to 6 feet, self-cleaning with wiping-action contacts, and capable of withstanding extreme temperatures ranging from -55 to 85 ºC. Ideal for C4I systems, military vehicles, and more.
Product Specifications
Applications 0
C4I SystemsMilitary VehiclesCommercial AircraftTelecommunications EquipmentMissiles and OrdnanceMedical EquipmentCommercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environmentsWatertight in up to 6 feet of waterMolded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contactsDesigned for multiple cable diametersMiniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacksPanel mount versions are available for both front- and rear-mount panelsShielding is available in all connector choicesAll standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Insulation Piercing
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold Cap
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
