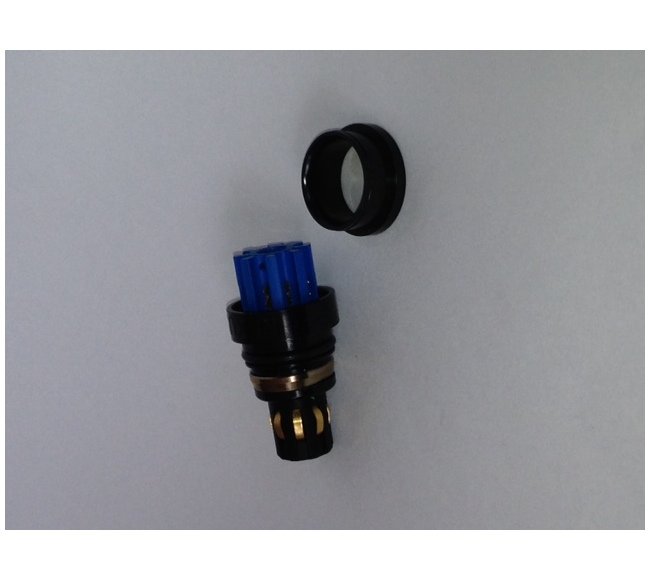

Waterproof Breakaway Plug Connector
Waterproof Breakaway Plug Connector
SKU:7AN-9012cc
Rugged Waterproof Breakaway Plug Connector for extreme environments, ideal for military and commercial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Waterproof Breakaway Plug Connector
$39.99
Quantity: 1
Claim Your Seller Account
Waterproof Breakaway Plug Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Waterproof Breakaway Plug Connector is ideal for demanding applications in C4I Systems, Military Vehicles, and Commercial Aircraft. With ruggedized construction and gold-plated BeCu contacts, this plug offers reliable performance in extreme environments. Featuring a self-cleaning design and watertight seal up to 6 feet, it ensures consistent connectivity under harsh conditions. Designed for versatility, it accommodates multiple cable diameters and offers options for solder or insulation-piercing contacts, wire strain relief, and over-molded versions.
Product Specifications
Applications 0
C4I SystemsMilitary VehiclesCommercial AircraftTelecommunications EquipmentMissiles and OrdnanceMedical EquipmentCommercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environmentsWatertight in up to 6 feet of waterMolded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contactsDesigned for multiple cable diametersMiniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0

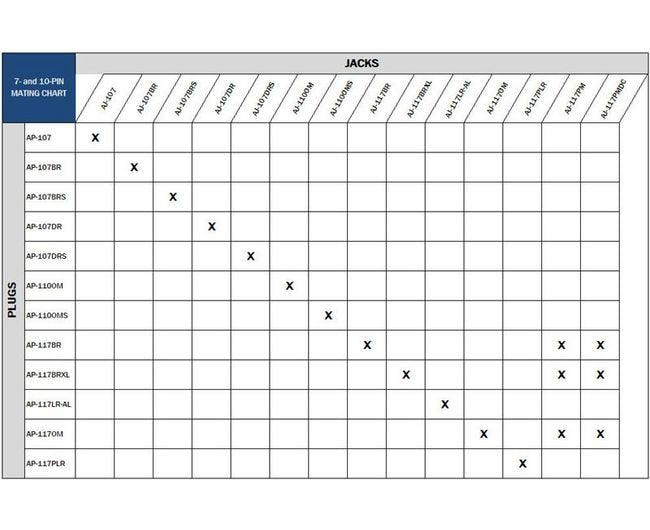

7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacksPanel mount versions are available for both front- and rear-mount panelsShielding is available in all connector choicesAll standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Insulation Piercing
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold Cap
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
