Waterproof Jack w/Locking Ring for 7 & 10-Pin Connectors
Waterproof Jack w/Locking Ring for 7 & 10-Pin Connectors
SKU:7AN-3c5b7a
Reliable miniature waterproof jack for 7 & 10-pin connectors with gold-plated brass contacts, ideal for ruggedized commercial/military use.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Waterproof Jack w/Locking Ring for 7 & 10-Pin Connectors
$25.99
Quantity: 1
Claim Your Seller Account
Waterproof Jack w/Locking Ring for 7 & 10-Pin Connectors
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

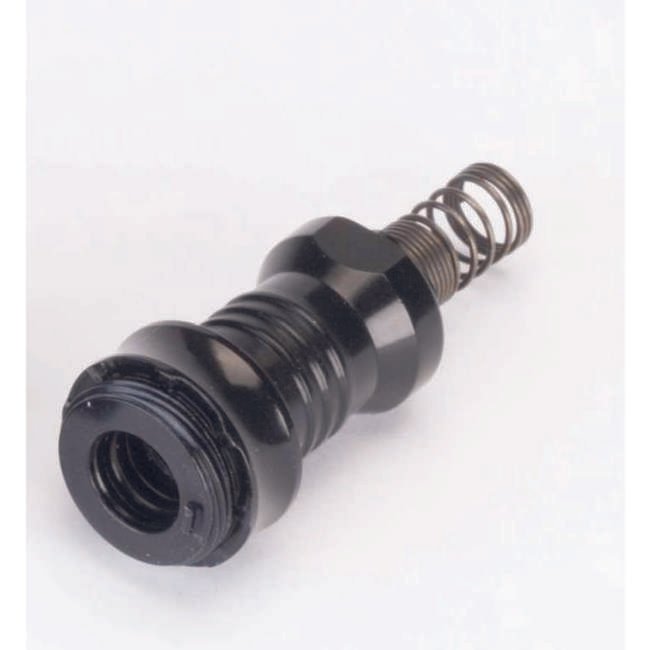

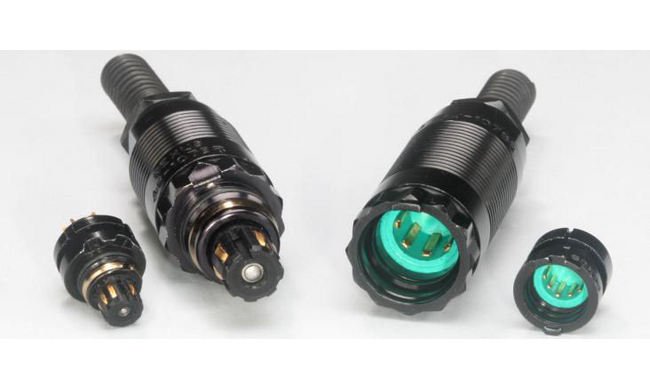

The Miniature Waterproof Jack with Locking Ring is a seven-conductor connector designed for ruggedized commercial and military applications. Featuring gold-plated brass contacts, this connector ensures reliable conductivity and durability. With a black anodized aluminum shell and thermoset plastic insert material, it provides robust protection in harsh environments. The solder terminals and wire strain relief accommodate cables up to .250" in diameter, offering secure connections in challenging conditions. Meeting stringent standards for engagement and disengagement forces, temperature range, and contact resistance, this connector is ideal for demanding environments requiring reliable performance.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief (.250 max)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
