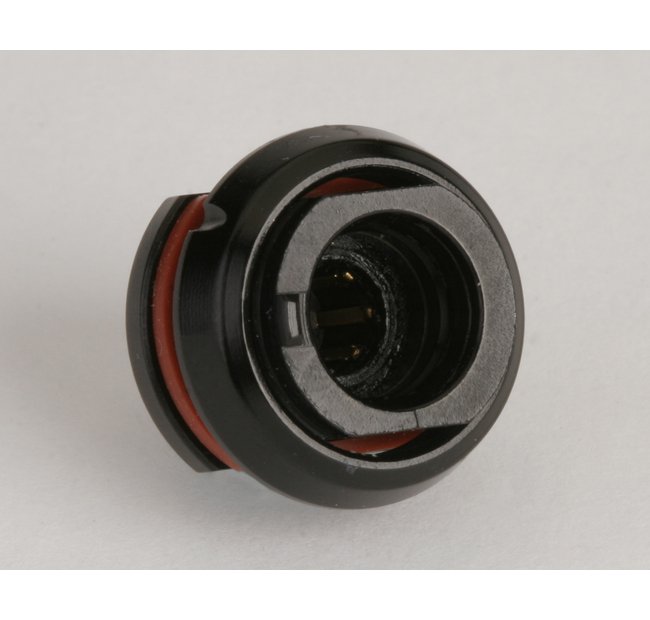

Waterproof Rear Panel Mount Miniature Jack Connector

Name: Waterproof Rear Panel Mount Miniature Jack Connector
Brand: Amphenol NEXUS Technologies
SKU: 7AN-867d28
Price: 24.99 USD
Availability: OutOfStock

SKU:7AN-867d28

Ruggedized 7-conductor waterproof miniature jack connector for secure, reliable connections in challenging environments.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Waterproof Rear Panel Mount Miniature Jack Connector is a high-performance solution for 7-conductor connectivity needs in ruggedized commercial and military applications. Built with aluminum shell and gold-plated brass contacts, this connector ensures reliable signal transmission in harsh environments. With black anodized and black chrome plating options, it offers versatility while meeting temperature, current capacity, and resistance requirements. Designed for 5000 mating cycles and featuring an axial push-pull motion, this connector guarantees secure connections with engagement and disengagement forces of ≤ 14 lb and 8 to 12 lb respectively, making it ideal for demanding scenarios.

Product Specifications

Specifications Application

Ruggedized Commercial / Military

Specifications Conductors

Specifications Contact Current Capacity

3 A

Specifications Contact Material

Gold-plated Brass

Specifications Contact Resistance

â¤ 150 mV

Specifications Contact Types

Solder

Specifications Disengagement Force

8 to 12 lb

Specifications Engagement Force

â¤ 14 lb

Specifications Insert Material

Thermoset Plastic

Specifications Mating

Axial Push-Pull Motion

Specifications Mating Cycles

5000

Specifications Plating Material

Black Anodize (standard) | Black Chrome (shielded)

Specifications Shell Material

Aluminum

Specifications Temperature

-55 to 85 ÂºC
