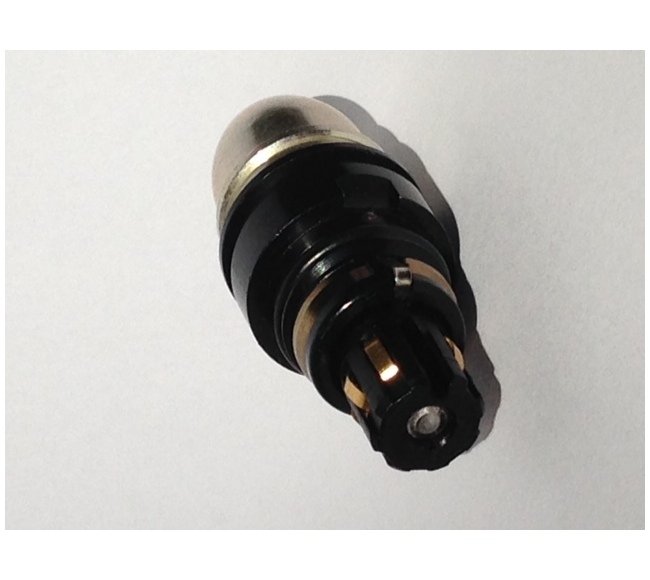

Waterproof Shielded Plug, 7-10 Pin Breakaway Connector
Waterproof Shielded Plug, 7-10 Pin Breakaway Connector
SKU:7AN-c09d59
Ruggedized waterproof plug for military/commercial use. Gold-plated contacts, reliable in severe conditions.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Waterproof Shielded Plug, 7-10 Pin Breakaway Connector
$39.99
Quantity: 1
Claim Your Seller Account
Waterproof Shielded Plug, 7-10 Pin Breakaway Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Waterproof Shielded Plug is a ruggedized commercial/military-grade connector designed for severe environments. With gold-plated BeCu contacts, this plug ensures reliable performance in applications such as C4I systems, military vehicles, and commercial aircraft. Meeting temperature standards of -55 to 85ºC, with an engagement force of ≤14 lb and disengagement force of 8 to 12 lb, this plug is ideal for critical operations. Its miniature version offers a 50% size reduction without compromising performance, making it perfect for space-constrained installations.
Product Specifications
Applications 0
C4I SystemsMilitary VehiclesCommercial AircraftTelecommunications EquipmentMissiles and OrdnanceMedical EquipmentCommercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environmentsWatertight in up to 6 feet of waterMolded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contactsDesigned for multiple cable diametersMiniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacksPanel mount versions are available for both front- and rear-mount panelsShielding is available in all connector choicesAll standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Insulation Piercing
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold Cap
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
