The Watertight Breakaway Jack Connector is a ruggedized commercial/military-grade plug and jack set designed to meet severe environmental conditions. Featuring 7-pin insulation-piercing conductors, gold-plated brass contacts, and an aluminum shell with black anodized plating, this connector offers reliable performance in challenging environments. With an engagement force of ≤ 14 lb and a disengagement force of 8 to 12 lb, it ensures secure connections. Built for durability, it has a mating cycle of 5000, temperature range of -55 to 85 ºC, and contact current capacity of 3 A. Additionally, its miniature version is 50% smaller while maintaining high performance levels, making it ideal for C4I Systems, military vehicles, commercial aircraft, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
C4I Systems Military Vehicles Commercial Aircraft Telecommunications Equipment Missiles and Ordnance Medical Equipment Commercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environments Watertight in up to 6 feet of water Molded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Designed for multiple cable diameters Miniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacks Panel mount versions are available for both front- and rear-mount panels Shielding is available in all connector choices All standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Insulation Piercing
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000

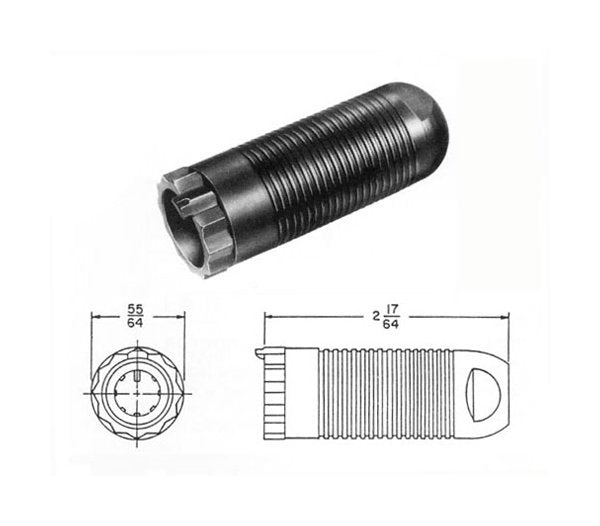

Specifications Overall Diameter
.859 in
Specifications Overall Length
2.266 in
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
