WB100 Series Heavy Duty Wall Bracket Performance Jib Cranes
WB100 Series Heavy Duty Wall Bracket Performance Jib Cranes
SKU:WB1-fcbc58
Economical heavy duty jib cranes for efficient hoisting, easy movement, and seamless installation in industrial settings.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
WB100 Series Heavy Duty Wall Bracket Performance Jib Cranes
$4,799.99
Quantity: 1
Claim Your Seller Account
WB100 Series Heavy Duty Wall Bracket Performance Jib Cranes
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

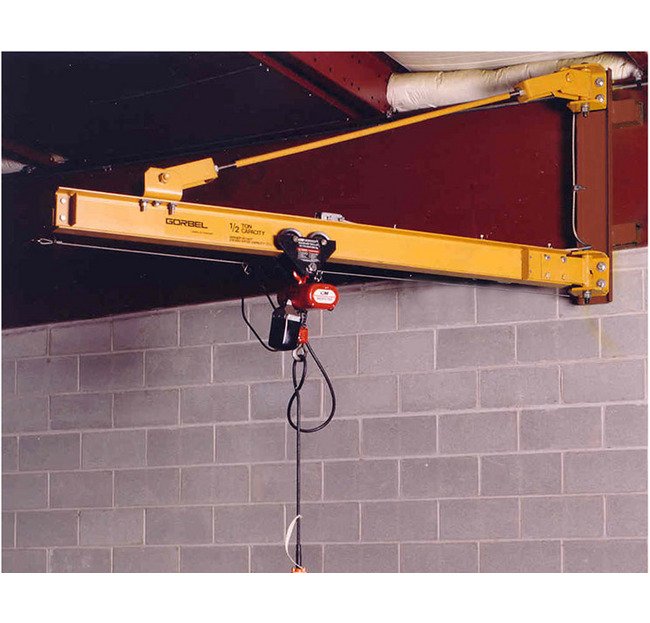

The WB100 Series Heavy Duty Wall Bracket Performance Jib Cranes offer an economical yet robust solution for individual hoisting needs in industrial settings. With a 5-ton capacity, 12 ft span, and various dimensions ensuring proper clearance, these jib cranes are ideal for bays, walls, or plant columns. Gorbel's Advantage includes ease of movement with low dead weight, safety features like formed bracket fittings, and full rated capacity for powered hoists. Installation is a breeze with single tie rod leveling and bolted connections, making maintenance convenient with provided grease fittings.
Product Specifications

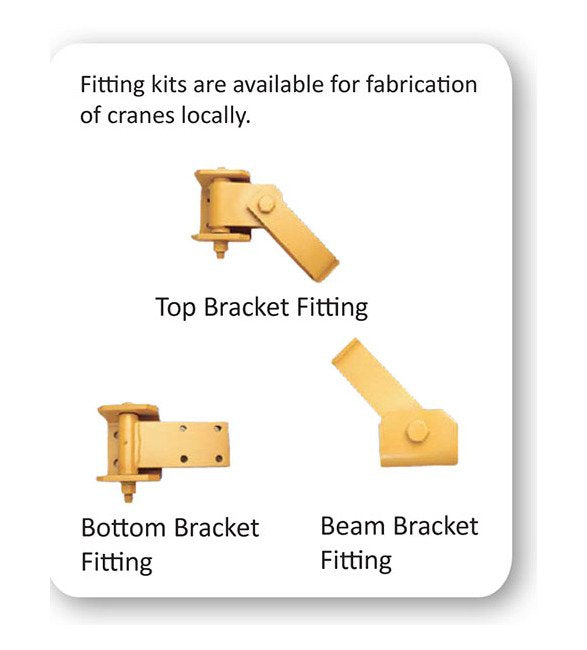

Gorbels Advantage 0
Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

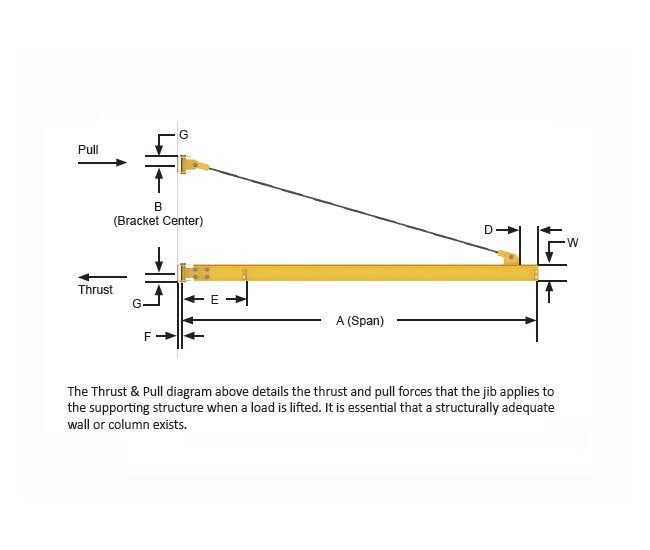

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
4 ft
Specifications Capacity
5 ton
Specifications Dimension D
1 ft 9 in
Specifications Dimension E
15-1/4 in
Specifications Dimension F
6 in
Specifications Dimension G
7 in
Specifications Dimension W
12 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
12 ft
Specifications Thrust Pull
39072 lb
Specifications Tie Rod Diameter
2 in
