WB100 Series Wall Bracket Performance Jib Cranes - Heavy Duty 5 Ton Capacity
WB100 Series Wall Bracket Performance Jib Cranes - Heavy Duty 5 Ton Capacity
SKU:WB1-52483f
Highly reliable WB100 Series Wall Bracket Performance Jib Cranes - Ideal for heavy-duty lifting applications, 5-ton capacity, and easy installation.
Regular price
$6,299.99
Regular price
Sale price
$6,299.99
Unit price
per
Initiate Order
WB100 Series Wall Bracket Performance Jib Cranes - Heavy Duty 5 Ton Capacity
$6,299.99
Quantity: 1
Claim Your Seller Account
WB100 Series Wall Bracket Performance Jib Cranes - Heavy Duty 5 Ton Capacity
$6,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

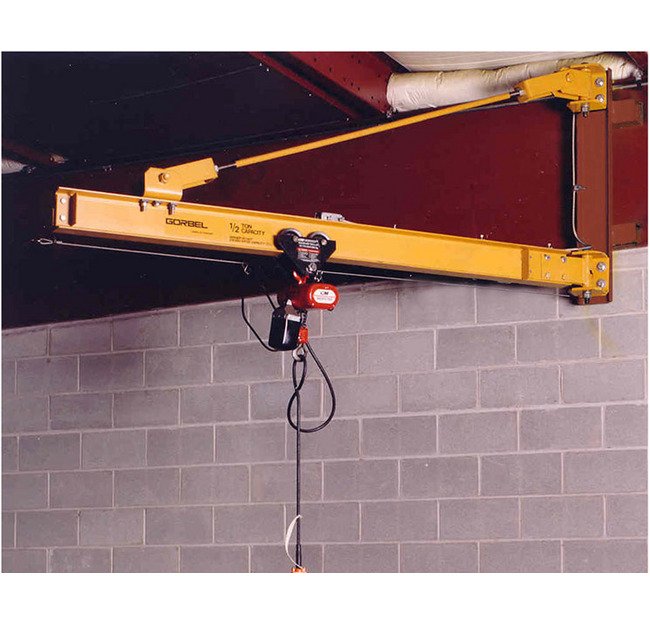

The WB100 Series Wall Bracket Performance Jib Cranes are a cost-effective heavy-duty solution suitable for individual use in bays, along walls, or as a supplement to other lifting systems. With a 5-ton capacity, a span of 14 ft, and sturdy construction designed for ease of movement and installation, these jib cranes offer superior load positioning, reliability, and safety. The pre-engineered design allows for full rated capacity use with powered hoists, while the single tie rod system and bolted connections ensure straightforward leveling and maintenance. Compliance with stringent industry standards ensures reliability and efficiency in various operational environments.
Product Specifications
Gorbels Advantage 0

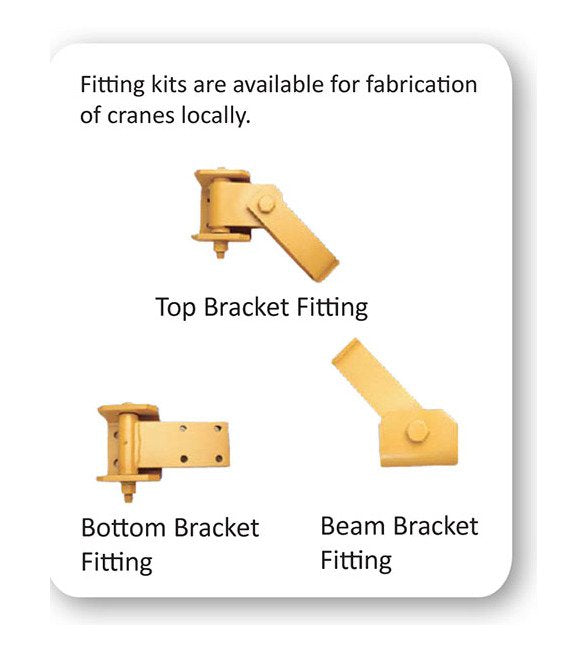

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

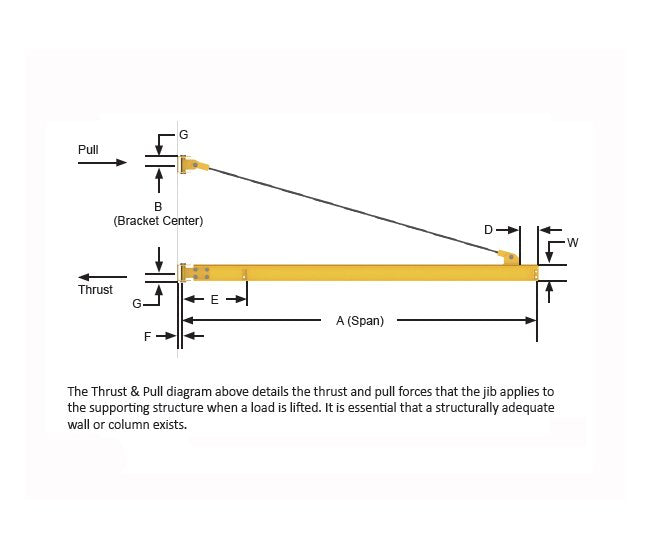

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
4 ft 9 in
Specifications Capacity
5 ton
Specifications Dimension D
2 ft
Specifications Dimension E
15-1/4 in
Specifications Dimension F
6 in
Specifications Dimension G
7 in
Specifications Dimension W
12 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
14 ft
Specifications Thrust Pull
39209 lb
Specifications Tie Rod Diameter
2 in
