Weatherproof Cast Iron Hinged Terminal Cabinets - H3200-T Type
Weatherproof Cast Iron Hinged Terminal Cabinets - H3200-T Type
SKU:H32-4e58c7
Weatherproof Cast Iron Hinged Terminal Cabinets - NEMA 3R/IV Compliant, Cast Iron Construction, Surface Mount, with Ample Wiring Space & Secure Terminal Blocks.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Weatherproof Cast Iron Hinged Terminal Cabinets - H3200-T Type
$899.99
Quantity: 1
Claim Your Seller Account
Weatherproof Cast Iron Hinged Terminal Cabinets - H3200-T Type
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

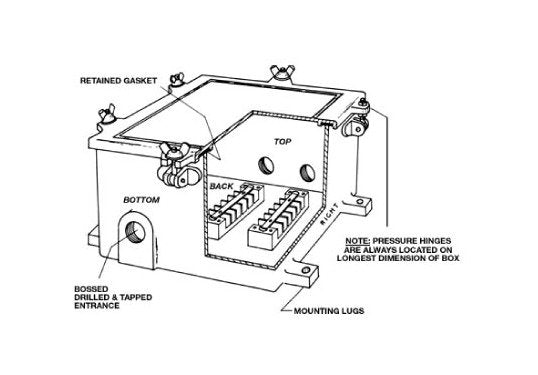

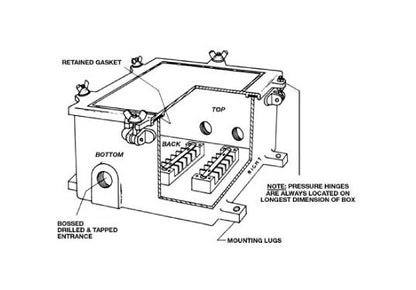

The Weatherproof Cast Iron Hinged Terminal Cabinets in H3200-T Type are designed to meet stringent institutional and government procurement standards. Constructed with cast iron and hot-dipped galvanized, these cabinets are surface-mounted and comply with NEMA 3R and NEMA IV requirements. Featuring stainless steel hardware, neoprene gaskets, and terminal blocks rated at 30 amperes and 750 volts, these cabinets provide secure and weather-tight housing for terminal blocks. Ample wiring space, galvanized non-removable hasp, and customizable extras like drilling and tapping make these cabinets ideal for a range of wiring conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Weight
350 lbs
Specifications Argmnt Of Blocks Vertical Rows
lllll
Specifications Block To Block
3.5
Specifications Construction
cast iron
Specifications Inside Depth
5 3/4 in.
Specifications Inside Length
34 in.
Specifications Inside Width
30 in.
Specifications Max Conduit
3 in.
Specifications Mounting
Surface
Specifications No Of Hinges
4
Specifications No Of Wing Nuts
8
Specifications No Of Wires
180
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200-T
Specifications Wall Thickness
5/16 in.
Specifications Wiring Space Block To Wall
3 in.
