Weatherproof Terminal Cabinets H3200-T Type
Weatherproof Terminal Cabinets H3200-T Type
SKU:H32-d96ace
Durable, weatherproof terminal cabinets with secure terminal block housing and ample wiring space for efficient electrical connections.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Weatherproof Terminal Cabinets H3200-T Type
$789.99
Quantity: 1
Claim Your Seller Account
Weatherproof Terminal Cabinets H3200-T Type
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

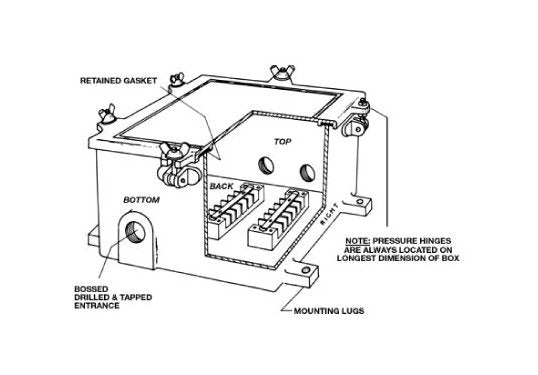

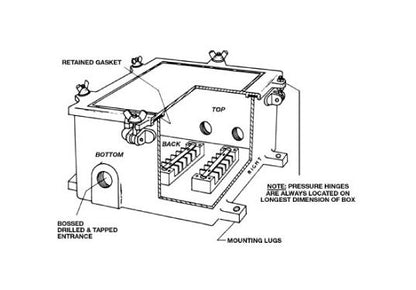

The Weatherproof Terminal Cabinets H3200-T Type are robustly constructed from cast iron with a hot-dipped galvanized finish, ensuring durability and weather resistance. These surface-mount cabinets comply with NEMA 3R and NEMA IV standards, meeting U/L Std. 50 specifications. Equipped with stainless steel hardware, neoprene gasket, and four exterior mounting lugs, these cabinets offer a secure housing for terminal blocks rated at 30 amperes and 750 volts. With ample wiring space and a weather-tight design, these cabinets are ideal for various wire conditions. Available in different sizes, these cabinets guarantee a secure and efficient electrical connection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Weight
330 lbs
Specifications Argmnt Of Blocks Vertical Rows
llll
Specifications Block To Block
4
Specifications Construction
cast iron
Specifications Inside Depth
5 3/4 in.
Specifications Inside Length
34 in.
Specifications Inside Width
30 in.
Specifications Max Conduit
3 in.
Specifications Mounting
Surface
Specifications No Of Hinges
4
Specifications No Of Wing Nuts
8
Specifications No Of Wires
120
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200-T
Specifications Wall Thickness
5/16 in.
Specifications Wiring Space Block To Wall
5 in.
